84-5030.0040
ActiveEAO

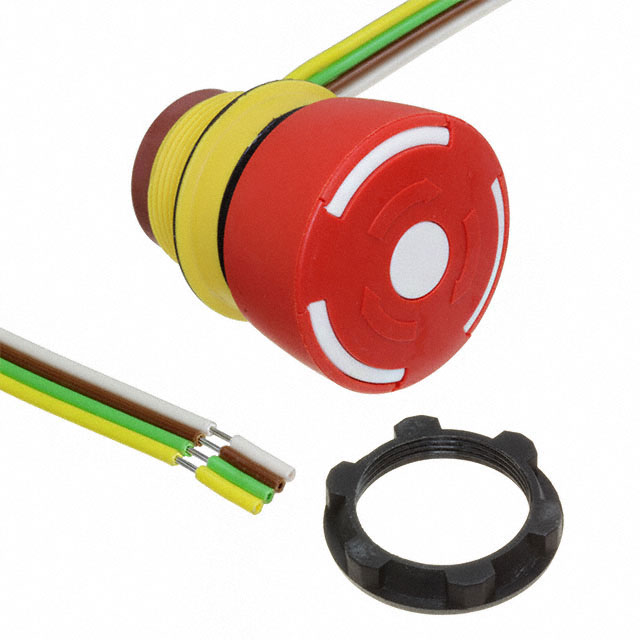

SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
84-5030.0040
ActiveEAO
SWITCH ESTOP TWIST RESET 5A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 84-5030.0040 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating (Amps) | 5 A |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Reset Operation | Twist |
| Switch Function | On-Off, Off-On |
| Termination Style | Cable Leads |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 52.65 | |
| 5 | $ 48.79 | |||
| 10 | $ 44.94 | |||
| 25 | $ 41.73 | |||
| 50 | $ 38.52 | |||
| 100 | $ 36.60 | |||
84-5030 Series
SWITCH ESTOP TWIST RESET 5A 250V
| Part | Mounting Type | Circuit | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Reset Operation | Current Rating (Amps) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Switch Function | Voltage Rating - DC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
EAO 84-5030.0040 | Panel Mount, Front | DPST-NO/NC | 250 V | 22.3 mm | Twist | 5 A | Cable Leads | 65 °C | -25 °C | IP65 - Dust Tight, Water Resistant | Off-On, On-Off | 250 V |
Description
General part information
84-5030 Series
SWITCH ESTOP TWIST RESET 5A 250V
