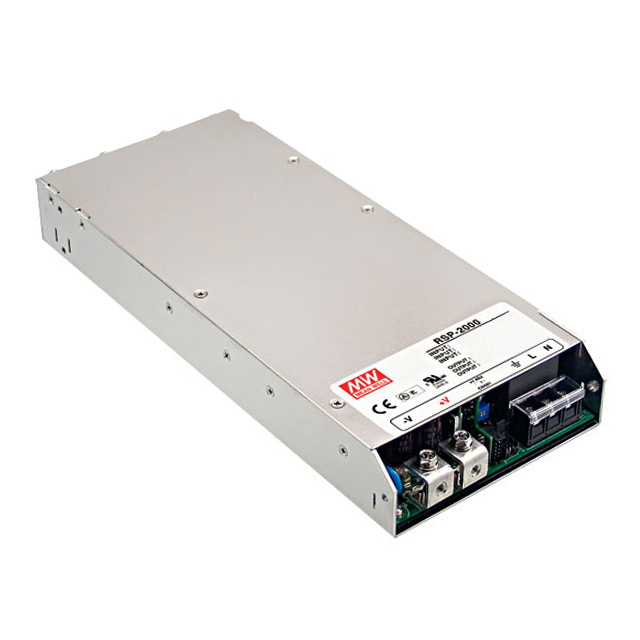

RSP-2000-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 2016W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RSP-2000-48
ActiveMEAN WELL USA Inc.
AC/DC CONVERTER 48V 2016W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RSP-2000-48 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, CE, cURus, TUV |
| Current - Output 1 | 42 A |
| Efficiency | 92 % |
| Features | Universal Input, Remote Sense, Remote On/Off, Adjustable Output, PFC |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -35 °C |
| Power (Watts) | 2016 W |
| Size / Dimension [x] | 294.6 mm |
| Size / Dimension [x] | 11.6 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 1.61 " |
| Size / Dimension [z] | 41 mm |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 127 VDC, 90 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 499.11 | |
| 5 | $ 474.20 | |||
| 10 | $ 458.28 | |||
Description
General part information
RSP-2000 Series
Enclosed AC DC Converters 1 Output 48V 90 ~ 264 VAC, 127 ~ 370 VDC Input
