6032449
ActiveSICK, Inc.

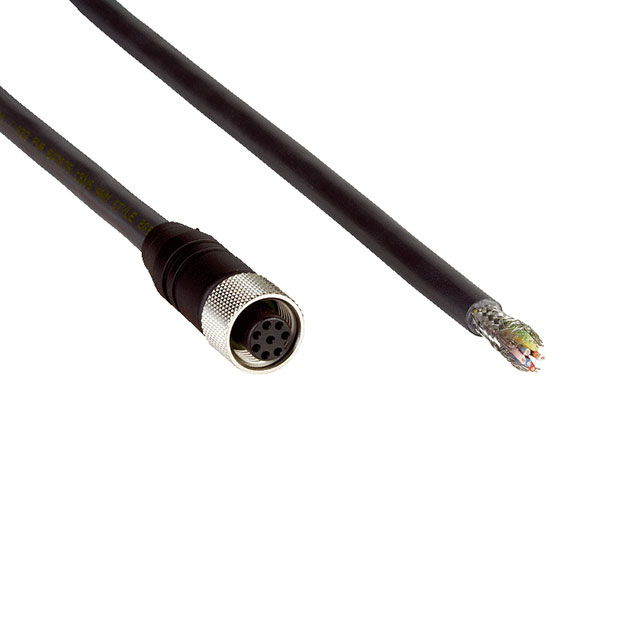

CIRC CBL 8POS PLUG TO WIRE 16.4'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6032449
ActiveSICK, Inc.
CIRC CBL 8POS PLUG TO WIRE 16.4'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 6032449 | DOL-1 Series |
|---|---|---|
| 1st Connector Gender | Female Sockets | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions | 8 positions |
| 1st Connector Number of Positions Loaded | All | All |
| 1st Connector Number of Positions Loaded | - | 7 |
| 1st Connector Shell Size - Insert | M12 | M12 |
| 1st Connector Type | Plug | Plug |
| 2nd Connector Type | Wire Leads | Wire Leads |
| Assembly Configuration | Standard | Standard |
| Cable Material | Polyurethane (PUR) | Polyurethane (PUR) |
| Cable Type | Round | Round |
| Color | Black | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof | IP67 - Dust Tight, Waterproof |
| Length | - | 24.6 ft |
| Length | - | 7.5 m |
| Shielding | Shielded | Shielded |
| Usage | Industrial Environments | Industrial Environments |
DOL-1 Series
CBL CIRC 8POS FEM TO WIRE 24.6'
| Part | Shielding | 1st Connector Gender | 1st Connector Number of Positions Loaded | 2nd Connector Type | 1st Connector Mounting Type | Color | Assembly Configuration | 1st Connector Type | 1st Connector Number of Positions | 1st Connector Shell Size - Insert | Cable Type | Length [x] | Length [x] | Cable Material | Ingress Protection | 1st Connector Number of Positions Loaded | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SICK, Inc. 6042339 | Shielded | Female Sockets | 7 | Wire Leads | Free Hanging (In-Line) | Black | Standard | Plug | 8 positions | M12 | Round | 24.6 ft | 7.5 m | ||||
SICK, Inc. 6032867 | Shielded | Female Sockets | Wire Leads | Free Hanging (In-Line) | Black | Standard | Plug | 8 positions | M12 | Round | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | All | Industrial Environments | |||
SICK, Inc. 6032449 | Shielded | Female Sockets | Wire Leads | Free Hanging (In-Line) | Black | Standard | Plug | 8 positions | M12 | Round | Polyurethane (PUR) | IP67 - Dust Tight, Waterproof | All | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 74.96 | |
Description
General part information
DOL-1 Series
Circular Cable Assembly Shielded 16.40' (5.00m)
