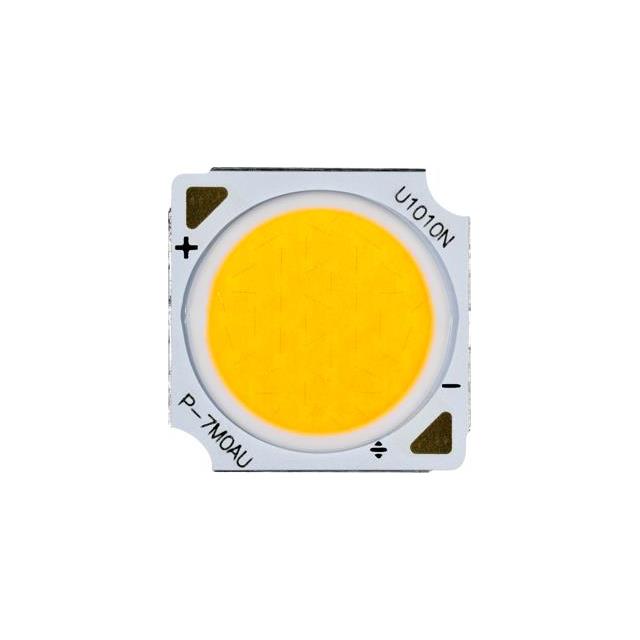

CMU1010-R160-00PN0Z0AL7C

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CMU1010-R160-00PN0Z0AL7C

Active

Cree LED

XLAMP CMU LED WHITE PRO9

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CMU1010-R160-00PN0Z0AL7C

Configuration	Square
CRI (Color Rendering Index)	95
Current - Max [Max]	720 mA
Current - Test	270 mA
Height [z]	1.5 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	9.8 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.7 V

CMU1010 Series

Part	Configuration	CRI (Color Rendering Index)	Lens Type	Color	Current - Test	Temperature - Test	Light Emitting Surface (LES) [diameter]	CCT (K)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Viewing Angle	Height [z]	Type	Luminous Flux @ Current/Temperature	Lumens/Watt @ Current - Test	Mounting Type	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Flux @ 85°C, Current - Test
Cree LED CMU1010-R160-00PN0U0A27G	Square	90	Flat	Warm White	270 mA	85 °C	9.8 mm	2700 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)
Cree LED CMU1010-0000-000N0Z0A35H	Square	95	Flat	Warm White	270 mA	85 °C	9.8 mm	3500 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)	1055 lm	125 lm/W
Cree LED CMU1010-R160-00PN0Z0AL7C	Square	95	Flat		270 mA	85 °C	9.8 mm		720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)
Cree LED CMU1010-0000-000N0U0A30H		90		Warm White	270 mA			3000 K	720 mA	33.7 V	115 °				138 lm/W	Surface Mount	0.067 in	1.7 mm	2-SMD No Lead	13.5 mm	0.531 in	0.531 in	13.5 mm	1252 lm
Cree LED CMU1010-R160-00PN0Z0A40H	Square	95	Flat	Neutral White	270 mA	85 °C	9.8 mm	4000 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)
Cree LED CMU1010-0000-000N0U0A27H		90		Warm White	270 mA			2700 K	720 mA	33.7 V	115 °				132 lm/W	Surface Mount	0.067 in	1.7 mm	2-SMD No Lead	13.5 mm	0.531 in	0.531 in	13.5 mm	1202 lm
Cree LED CMU1010-0000-000N0U0A31Q		90		Warm White	270 mA			3100 K	720 mA	33.7 V	115 °				131 lm/W	Surface Mount	0.067 in	1.7 mm	2-SMD No Lead	13.5 mm	0.531 in	0.531 in	13.5 mm	1196 lm
Cree LED CMU1010-R160-000N0B0A30E	Square	70	Flat	Warm White	270 mA	85 °C	9.8 mm	3000 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)	1594 lm	175 lm/W
Cree LED CMU1010-R160-000N0H0A22G	Square	80	Flat	Warm White	270 mA	85 °C	9.8 mm	2200 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)	1222 lm
Cree LED CMU1010-R160-000N0U0A57G	Square	90	Flat	Cool White	270 mA	85 °C	9.8 mm	5700 K	720 mA	33.7 V	115 °	1.5 mm	Chip On Board (COB)	1298 lm	143 lm/W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	160	$ 5.00

Description

General part information

CMU1010 Series

LED Lighting COBs Engines Modules Chip On Board (COB) XLamp® CMU1010 Square
