182130-10

Active

Amphenol RF

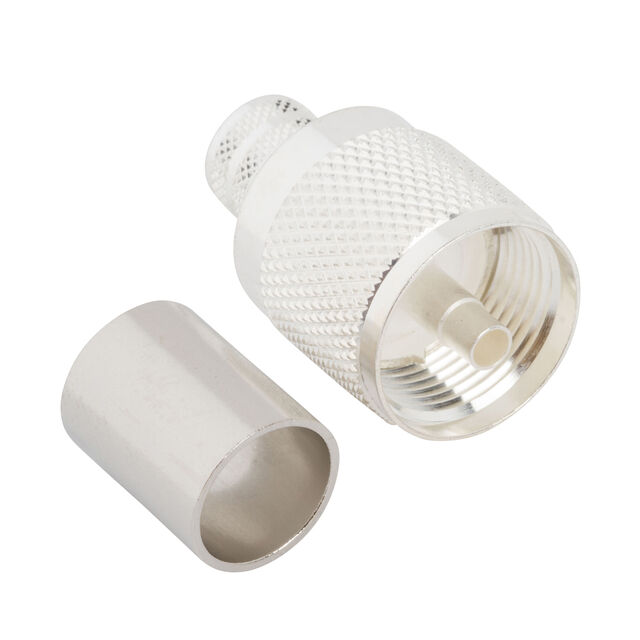

UHF STRAIGHT CRMIP PLUG, LMR400,

Search across all available documentation for this part.

Active

Amphenol RF

UHF STRAIGHT CRMIP PLUG, LMR400,

Technical Specifications

Parameters and characteristics for this part

Specification	182130-10

Body Finish	Silver
Body Material	Brass
Cable Group	LMR-400, Belden 9913, Belden 9914
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	UHF
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	2.5 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Connector, 1 Ferrule
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

Part	Impedance	Mounting Type	Housing Color	Number of Ports	Shield Termination	Center Contact Plating	Connector Style	Cable Group	Body Material	Includes	Mating Cycles	Dielectric Material	Connector Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Frequency - Max [Max]	Center Contact Material	Contact Termination
Amphenol RF 182130-10	50 Ohms	Free Hanging (In-Line)	Silver	1	Crimp	Silver	UHF	Belden 9913 Belden 9914 LMR-400	Brass	1 Connector 1 Ferrule	500	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Silver	-65 ░C	165 °C	2.5 GHz	Brass	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

UHF Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
