KX15-30K3DE

Active

JAE Electronics

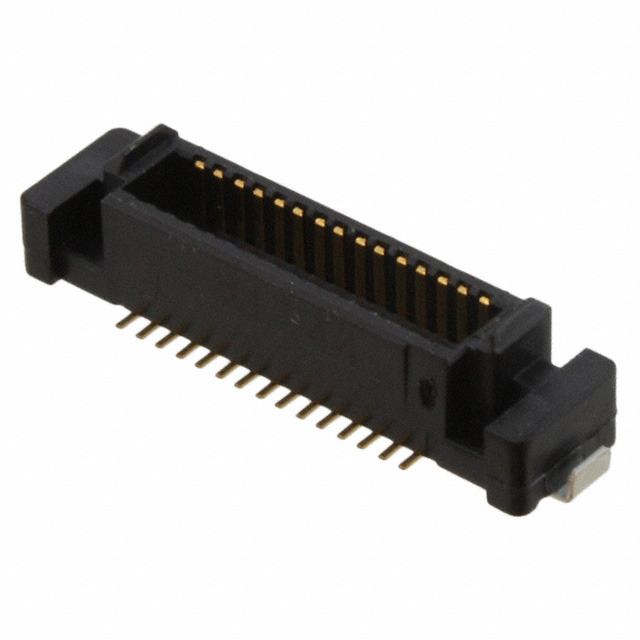

CONN PLUG 30POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 30POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-30K3DE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board [z]	0.167 in
Height Above Board [z]	4.25 mm
Mated Stacking Heights	11 mm, 5 mm, 8 mm, 17 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions	30
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Rows	Contact Finish	Features	Mated Stacking Heights	Mounting Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
JAE Electronics KX15-30K3DE	4 Áin	0.1 Ám	30	2	Gold	Board Guide Solder Retention	5 mm 8 mm 11 mm 14 mm 17 mm	Surface Mount	0.167 in	4.25 mm	0.8 mm	0.031 in
JAE Electronics KX15-30KLDL-E1000E	4 Áin	0.1 Ám	30	2	Gold	Board Guide Solder Retention		Surface Mount Right Angle			0.8 mm	0.031 in	0.226 in	5.74 mm
JAE Electronics KX15-30K4D-E1000E	4 Áin	0.1 Ám	30	2	Gold	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	Surface Mount			0.8 mm	0.031 in	0.226 in	5.74 mm
JAE Electronics KX15-30K4DE	4 Áin	0.1 Ám	30	2	Gold	Board Guide Solder Retention	6 mm 9 mm 12 mm 15 mm 18 mm	Surface Mount			0.8 mm	0.031 in	0.226 in	5.74 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

30 Position Connector Plug, Center Strip Contacts Surface Mount Gold
