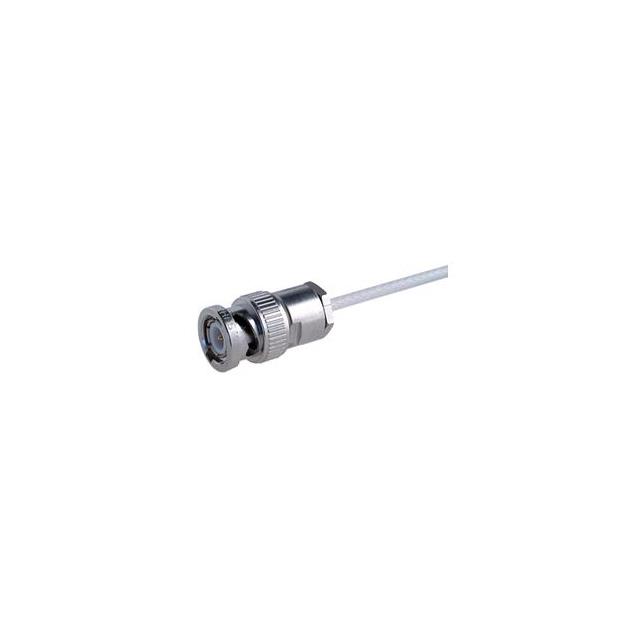

RF CONNECTORS / COAXIAL CONNECTORS BNC STRAIGHT CABLE PLUG(M)

11_BNC-50-3-5/133_NE

Active

Huber+Suhner, Inc.

RF CONNECTORS / COAXIAL CONNECTORS BNC STRAIGHT CABLE PLUG(M)

Description Specifications Series Pricing CAD Documents

Description

General part information

11_BNC-50 Series

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder

Technical Specifications

Parameters and characteristics for this part

Specification	11_BNC-50-3-5/133_NE

Body Finish	White Bronze
Body Material	Brass
Cable Group	400, 223, RG-58, 142
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE), Perfluoroalkoxy (PFA)
Fastening Type	Bayonet Lock
Frequency - Max	4 GHz
Housing Color	Silver
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Clamp
Voltage Rating	500 V

11_BNC-50 Series

Part	Contact Termination	Mounting Type	Connector Style	Fastening Type	Frequency - Max	Number of Ports	Connector Type	Housing Color	Shield Termination	Center Contact Material	Impedance	Cable Group	Dielectric Material	Center Contact Plating	Body Finish	Mating Cycles	Operating Temperature (Min)	Operating Temperature (Max)	Body Material	Voltage Rating
Huber+Suhner, Inc. 11_BNC-50-4-53/133_NE	Solder	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Beryllium Copper	50 Ohm
Huber+Suhner, Inc. 11_BNC-50-3-5/133_NE	Solder	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Clamp	Brass	50 Ohm	142 223 400 RG-58	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-4-4/133_NE	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Brass	50 Ohm	RG-59	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-7-1/133_NE	Solder	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Clamp	Brass	50 Ohm	RG-213	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-3-36/133_NE	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Brass	50 Ohm		Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-7-6/133_NE	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Brass	50 Ohm	RG-214	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-2-34/133_NE	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Brass Bronze	50 Ohm	RD-316	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-4-28/133_NE
Huber+Suhner, Inc. 11_BNC-50-2-13/133_NE	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Brass Bronze	50 Ohm	188 316 RG-174	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
Huber+Suhner, Inc. 11_BNC-50-2-14/133_NH	Crimp	Free Hanging (In-Line)	BNC	Bayonet Lock	4 GHz	1	Male Pin Plug	Silver	Crimp	Beryllium Copper Brass	50 Ohm	RD-316	Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE)	Gold	White Bronze	500 cycles	-65 °C	165 °C	Brass	500 V
