MPXB105K305G

Active

Cornell Dubilier Knowles

CAP FILM 1UF 10% 305VAC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MPXB105K305G

Active

Cornell Dubilier Knowles

CAP FILM 1UF 10% 305VAC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	7500	$ 0.64

Description

General part information

MPXB Series

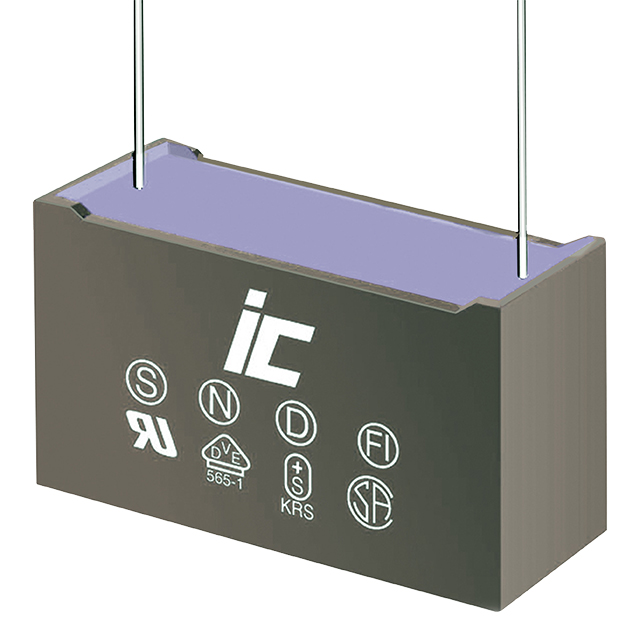

1 µF Film Capacitor 305V Polypropylene (PP), Metallized Radial

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPXB105K305G	MPXB Series

Applications	EMI, RFI Suppression	EMI, RFI Suppression
Capacitance	1 µF	0.22 - 100000 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Features	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB	Long Life, Low ESR, 85C/85% Humidity, Low ESL, THB
Height - Seated (Max)	-	19.5 - 20.5 mm
Height - Seated (Max)	-	0.551 - 0.807 in
Height - Seated (Max)	-	14 mm
Height - Seated (Max) [Max] [z]	23.5 mm	16.5 - 23.5 mm
Height - Seated (Max) [Max] [z]	0.925 in	0.925 - 16.51 mm
Lead Spacing	22.5 mm	15 - 27.5 mm
Lead Spacing	0.886 in	0.591 - 1.083 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Ratings	X2	X2
Size / Dimension	-	10 mm
Size / Dimension	-	0.709 - 32 mm
Size / Dimension	-	0.295 - 0.709 in
Size / Dimension	-	0.709 - 1.26 in
Size / Dimension	-	0.433 - 18 in
Size / Dimension [custom]	26 mm	26 mm
Size / Dimension [custom]	13 mm	13 mm
Size / Dimension [custom]	0.512 in	0.512 in
Size / Dimension [custom]	1.024 in	1.024 in
Termination	PC Pins	PC Pins
Tolerance	10 %	10 %
Voltage Rating - AC	305 V	305 V

MPXB Series

CAP FILM 0.22UF 10% 305VAC RAD

Part	Ratings	Package / Case	Voltage Rating - AC	Applications	Capacitance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Tolerance	Features	Dielectric Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Termination	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Height - Seated (Max)	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]
Cornell Dubilier Knowles MPXB224K305E	X2	Radial	305 V	EMI, RFI Suppression	0.22 µF	10 mm	18 mm	0.394 in	0.709 in	10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C	16.5 mm	16.51 mm	PC Pins	15 mm	0.591 in
Cornell Dubilier Knowles MPXB334K305E	X2	Radial	305 V	EMI, RFI Suppression	0.33 µF		0.709 ", 18 mm			10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C			PC Pins	15 mm	0.591 in	19.5 mm	0.768 in	0.433 in, 11 mm
Cornell Dubilier Knowles MPXB474K305G	X2	Radial	305 V	EMI, RFI Suppression	0.47 µF		26 mm	0.433 in	1.024 in	10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C			PC Pins	22.5 mm	0.886 in	20.5 mm	0.807 "	11 mm
Cornell Dubilier Knowles MPXB104K305E	X2	Radial	305 V	EMI, RFI Suppression	100000 pF		18 mm	0.295 in	0.709 in	10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C			PC Pins	15 mm	0.591 in		0.551 "	7.5 mm	14 mm
Cornell Dubilier Knowles MPXB205K305H	X2	Radial	305 V	EMI, RFI Suppression	2 µF		32 mm	0.709 "	1.26 in	10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C			PC Pins	27.5 mm	1.083 in			18 mm
Cornell Dubilier Knowles MPXB105K305G	X2	Radial	305 V	EMI, RFI Suppression	1 µF					10 %	85C/85% Humidity, Long Life, Low ESL, Low ESR, THB	Metallized, Polypropylene (PP)	Through Hole	-40 °C	110 °C	23.5 mm	0.925 in	PC Pins	22.5 mm	0.886 in					26 mm	13 mm	0.512 in	1.024 in
