SCP8TTF1HEL1TKM34E

Obsolete

Samsung Semiconductor, Inc.

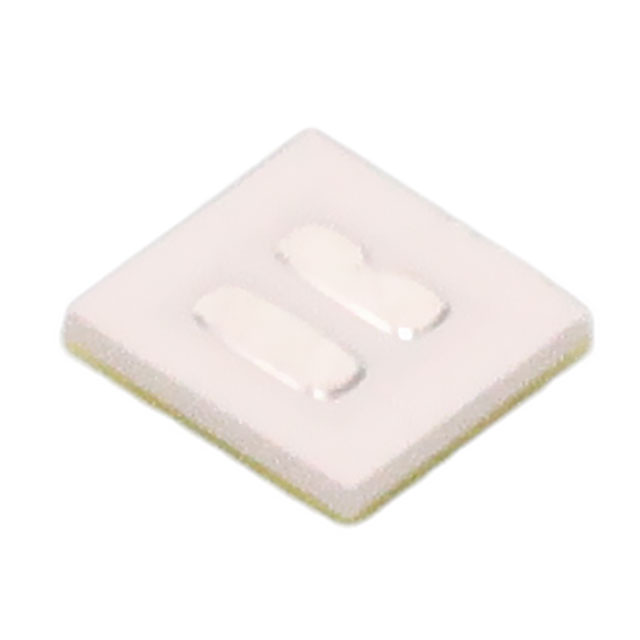

LED LH181B NEUT WHT 4000K SMD

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED LH181B NEUT WHT 4000K SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

LED LH181B NEUT WHT 4000K SMD

Part	Package / Case	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Flux @ 85°C, Current - Test	Viewing Angle	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Supplier Device Package	Current - Test	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Color
Samsung Semiconductor, Inc. SCP8TTF1HEL1TUM34E	2-SMD, No Lead	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	0.019 in	0.48 mm	155 lm	120 °	80	153 lm/W	SMD	350 mA	4000 K	2.9 V	1.4 A	Neutral, White
Samsung Semiconductor, Inc. SCP8TTF1HEL1TKM34E	2-SMD, No Lead	Surface Mount	2.36 mm	0.093 in	2.36 mm	0.093 in	0.019 in	0.48 mm	155 lm	120 °	80	153 lm/W	SMD	350 mA	4000 K	2.9 V	1.4 A	Neutral, White

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting LH181B White, Neutral 4000K 2.9V 350mA 120° 2-SMD, No Lead
