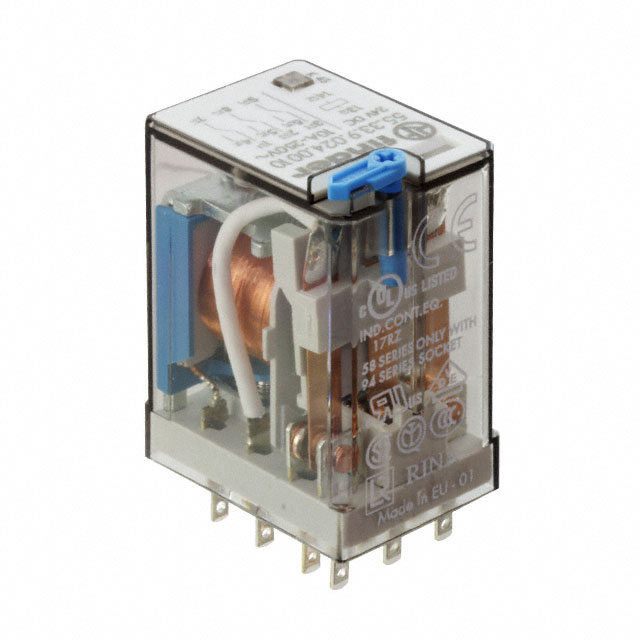

55.33.9.024.0010
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
55.33.9.024.0010
ActiveFinder Relays, Inc.
RELAY GEN PURPOSE 3PDT 10A 24V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 55.33.9.024.0010 |
|---|---|
| Approval Agency | cURus, VDE, CE, UKCA, CSA, CCC, RINA, ENEC, EAC |
| Coil Current | 40 mA |
| Coil Resistance | 600 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 24 VDC |
| Contact Form | 3PDT (3 Form C) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Features | Test Button |
| Load - Max Switching | 4000 VA |
| Mounting Type | Socketable |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 4.8 VDC |
| Operate Time | 9 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 5 ms |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | Plug In |
55.33.9 Series
| Part | Must Release Voltage | Contact Form | Mounting Type | Coil Current | Approval Agency | Contact Rating (Current) | Coil Resistance | Switching Voltage [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Release Time | Termination Style | Operate Time | Coil Voltage | Must Operate Voltage | Relay Type | Features | Load - Max Switching | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Finder Relays, Inc. | 4.8 VDC | 3PDT (3 Form C) | Socketable | 40 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 600 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 24 VDC | 19.2 VDC | General Purpose | Test Button | 4000 VA | Non Latching |
Finder Relays, Inc. | 22 VDC | 3PDT (3 Form C) | Socketable | 8.8 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 12.5 kOhms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 110 VDC | 88 VDC | General Purpose | Lighted Indicator | 4000 VA | Non Latching |
Finder Relays, Inc. | 2.4 VDC | 3PDT (3 Form C) | Socketable | 86 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 140 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 12 VDC | 9.6 VDC | General Purpose | Diode Lighted Indicator | 4000 VA | Non Latching |
Finder Relays, Inc. | 4.8 VDC | 3PDT (3 Form C) | Socketable | 40 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 600 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 24 VDC | 19.2 VDC | General Purpose | Diode Lighted Indicator | 4000 VA | Non Latching |
Finder Relays, Inc. | 4.8 VDC | 3PDT (3 Form C) | Socketable | 40 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 600 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 24 VDC | 19.2 VDC | General Purpose | Lighted Indicator | 4000 VA | Non Latching |
Finder Relays, Inc. | 4.8 VDC | 3PDT (3 Form C) | Socketable | 40 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 600 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 24 VDC | 19.2 VDC | General Purpose | 4000 VA | Non Latching | |
Finder Relays, Inc. | 44 VDC | 3PDT (3 Form C) | Socketable | 4 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 54 kOhms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 220 VDC | 176 VDC | General Purpose | 4000 VA | Non Latching | |
Finder Relays, Inc. | 22 VDC | 3PDT (3 Form C) | Socketable | 8.8 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 12.5 kOhms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 110 VDC | 88 VDC | General Purpose | 4000 VA | Non Latching | |
Finder Relays, Inc. | 2.4 VDC | 3PDT (3 Form C) | Socketable | 86 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 140 Ohms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 12 VDC | 9.6 VDC | General Purpose | 4000 VA | Non Latching | |
Finder Relays, Inc. | 22 VDC | 3PDT (3 Form C) | Socketable | 8.8 mA | CCC CE CSA cURus EAC ENEC RINA UKCA VDE | 10 A | 12.5 kOhms | 400 VAC | 85 °C | -40 °C | Silver Nickel (AgNi) | 5 ms | Plug In | 9 ms | 110 VDC | 88 VDC | General Purpose | Lighted Indicator Test Button | 4000 VA | Non Latching |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.89 | |
| 10 | $ 10.56 | |||
| 30 | $ 10.04 | |||
| 50 | $ 9.51 | |||
| 100 | $ 8.98 | |||
| 250 | $ 8.19 | |||
| 500 | $ 7.66 | |||
| 1000 | $ 7.26 | |||
Description
General part information
55.33.9 Series
General Purpose Relay 3PDT (3 Form C) 24VDC Coil Socketable
