CHM-6-40-80-9-AA00-F2-2

Active

Luminus Devices Inc.

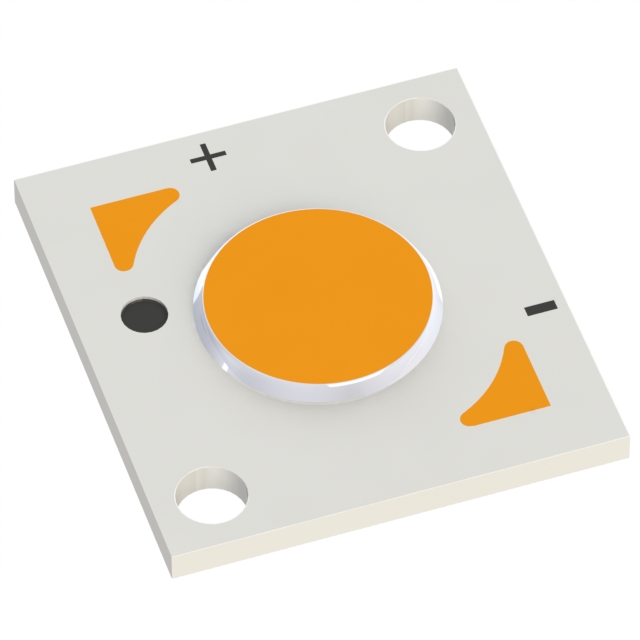

LED COB CHM6 NEUT WHT RECT 4000K

Search across all available documentation for this part.

Active

Luminus Devices Inc.

LED COB CHM6 NEUT WHT RECT 4000K

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	CHM-6-40-80-9-AA00-F2-2	CHM-6-40 Series

CCT (K)	4000 K	4000 K
Color	Neutral, White	Neutral, White
Configuration	Rectangle	Rectangle, Square
CRI (Color Rendering Index)	80	80 - 90
Current - Max [Max]	1.28 A	1.28 - 720 mA
Current - Test	640 mA	320 - 640 mA
Height [z]	1.37 mm	1.37 mm
Lens Type	Flat	Flat
Light Emitting Surface (LES) [diameter]	6.3 mm	6.3 mm
Lumens/Watt @ Current - Test	114 lm/W	103 - 128 lm/W
Luminous Flux @ Current/Temperature	655 lm	590 - 1360 lm
Size / Dimension [x]	12 mm	12 mm
Size / Dimension [y]	13 mm	13 mm
Temperature - Test	85 °C	85 °C
Type	Chip On Board (COB)	Chip On Board (COB)
Viewing Angle	120 °	120 °
Voltage - Forward (Vf) (Typ)	9 V	9 - 35 V

LED COB CHM6 GEN2 WHT RECT 4000K

Part	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	CCT (K)	Color	Voltage - Forward (Vf) (Typ)	Configuration	Lens Type	Light Emitting Surface (LES) [diameter]	Type	Height [z]	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Viewing Angle	Temperature - Test	Luminous Flux @ Current/Temperature	Current - Test
Luminus Devices Inc. CHM-6-40-80-36-AA10-F3-3	320 mA	12 mm	13 mm	4000 K	Neutral, White	34 V	Rectangle	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	128 lm/W	80	120 °	85 °C
Luminus Devices Inc. CHM-6-40-80-36-AA00-F2-2	320 mA	12 mm	13 mm	4000 K	Neutral, White	35 V	Rectangle	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	117 lm/W	80	120 °	85 °C	655 lm
Luminus Devices Inc. CHM-6-40-80-27-XH20-F3-3	720 mA			4000 K	Neutral, White	27.4 V	Square	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	103 lm/W	80	120 °	85 °C	1360 lm	480 mA
Luminus Devices Inc. CHM-6-40-90-18-AA00-F2-2	320 mA	12 mm	13 mm	4000 K	Neutral, White	17.5 V	Rectangle	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	105 lm/W	90	120 °	85 °C	590 lm	320 mA
Luminus Devices Inc. CHM-6-40-80-9-AA00-F2-3	1.28 A	12 mm	13 mm	4000 K	Neutral, White	9 V	Rectangle	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	114 lm/W	80	120 °	85 °C	655 lm	640 mA
Luminus Devices Inc. CHM-6-40-80-9-AA00-F2-2	1.28 A	12 mm	13 mm	4000 K	Neutral, White	9 V	Rectangle	Flat	6.3 mm	Chip On Board (COB)	1.37 mm	114 lm/W	80	120 °	85 °C	655 lm	640 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	2400	$ 1.48

General part information

LED Lighting COBs Engines Modules Chip On Board (COB) CHM-6 White, Neutral Rectangle
