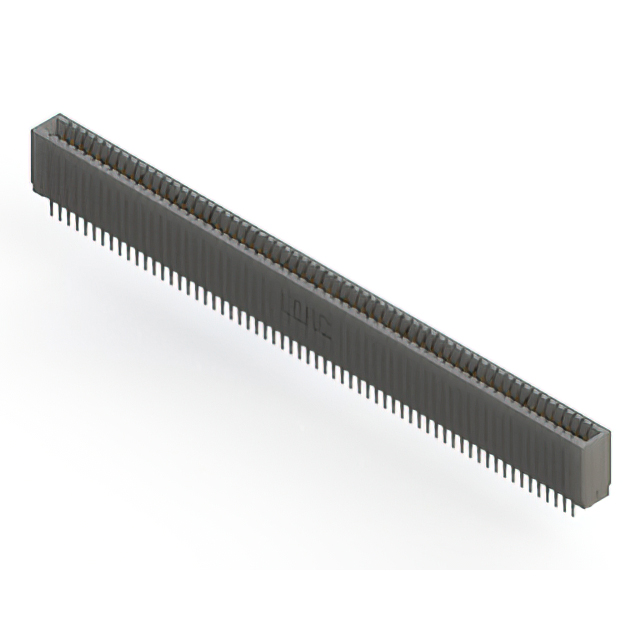

745-124-560-201

Active

EDAC Inc.

CONN EDGE DUAL FML 124POS 0.100

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

745-124-560-201

Active

EDAC Inc.

CONN EDGE DUAL FML 124POS 0.100

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	745-124-560-201

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever, Make Before Break
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	124
Number of Positions/Bay/Row [custom]	62
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

745-124 Series

Part	Read Out	Contact Finish	Gender	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Number of Rows	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Termination Rows	Mounting Type	Number of Positions/Bay/Row [custom]	Color	Number of Positions	Material - Insulation	Contact Material	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Termination
EDAC Inc. 745-124-525-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-545-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-560-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever Make Before Break	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-522-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-522-206	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-541-206	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit Wire Wrap
EDAC Inc. 745-124-520-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-525-206	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-520-206	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit
EDAC Inc. 745-124-540-201	Dual	Gold	Female	0.76 Ám	30 Áin	2.54 mm	0.1 in	2	Cantilever	-40 °C	105 ░C	2	Through Hole	62	Black	124	Polyester Thermoplastic	Copper Alloy	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Press-Fit Wire Wrap

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 15.92

Description

General part information

745-124 Series

124 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
