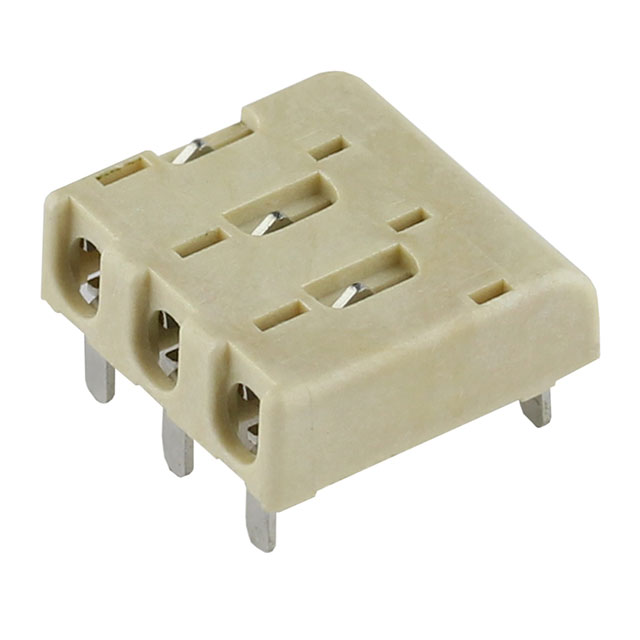

AWBR-400-03-RT1
ActiveAssmann WSW Components
LED CONNECTOR WIRE TO BOARD, HEIGHT 4,00MMWIDTH 11,95MM, ANGLED THR, 3PIN, 9A, WAVE SOLDERING REFLOW SOLDERING
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AWBR-400-03-RT1
ActiveAssmann WSW Components
LED CONNECTOR WIRE TO BOARD, HEIGHT 4,00MMWIDTH 11,95MM, ANGLED THR, 3PIN, 9A, WAVE SOLDERING REFLOW SOLDERING
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AWBR-400-03-RT1 |
|---|---|
| Connector Type | Poke-In Wire, Receptacle |
| Contact Finish | Tin |
| Contact Material | Phosphor Bronze |
| Current Rating (Amps) | 9 A |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5760 | $ 0.31 | |
Description
General part information
AWBR-400 Series
SSL Connector 3 Position Receptacle, Poke-In Wire Board to Cable/Wire 0.157" (4.00mm) Solder
