BQ24081EVM
ActiveEVAL MOUDLE FOR BQ24081
Deep-Dive with AI
Search across all available documentation for this part.

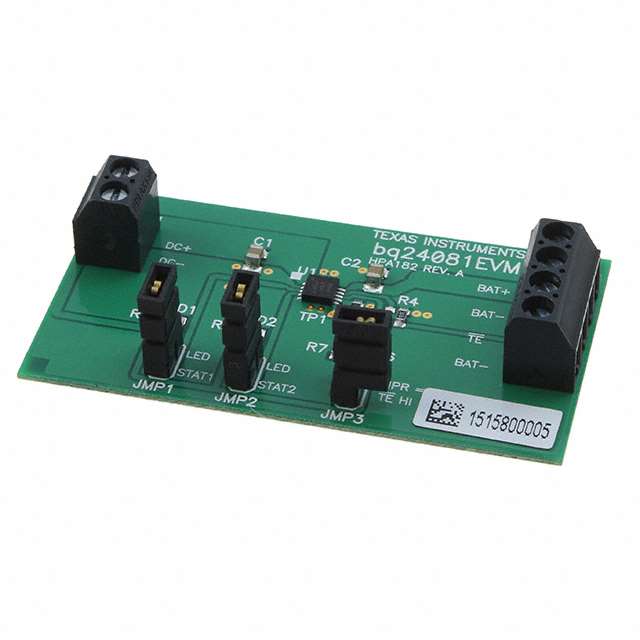

BQ24081EVM
ActiveEVAL MOUDLE FOR BQ24081
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | BQ24081EVM | BQ24081 Series |
|---|---|---|
| Battery Chemistry | - | Lithium Ion/Polymer |
| Battery Pack Voltage | - | 4.2 V |
| Charge Current - Max | - | 1 A |
| Current - Charging | - | Constant - Programmable |
| Embedded | False | False |
| Function | Battery Charger | Battery Charger |
| Grade | - | Automotive |
| Mounting Type | - | Surface Mount |
| Number of Cells | - | 1 |
| Operating Temperature | - | 85 - 125 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 10-VFDFN Exposed Pad |
| Primary Attributes | Li-Ion / Li-Pol (1 Cell) | Li-Ion / Li-Pol (1 Cell) |
| Programmable Features | - | Current, Timer |
| Qualification | - | AEC-Q100 |
| Secondary Attributes | Charge Timer | Charge Timer |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 10-VSON (3x3) |
| Type | Power Management | Power Management |
| Utilized IC / Part | BQ24081 | BQ24081 |
| Voltage - Supply (Max) | - | 6.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| DigiKey | Box | 1 | $ 58.80 | |
| Digikey | Box | 1 | $ 58.80 | |
| Mouser Electronics | N/A | 1 | $ 61.26 | |
BQ24081 Series
1-cell, 1-A, single Chip, Li-ion and Li-polymer Automotive charger
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Programmable Features | Number of Cells | Supplier Device Package | Current - Charging | Package / Case | Battery Pack Voltage | Battery Chemistry | Charge Current - Max [Max] | Voltage - Supply (Max) [Max] | Mounting Type | Qualification | Grade | Secondary Attributes | Function | Supplied Contents | Utilized IC / Part | Type | Embedded | Primary Attributes |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments BQ24081DRCRG4 | 85 °C | -40 °C | Current, Timer | 1 | 10-VSON (3x3) | Constant - Programmable | 10-VFDFN Exposed Pad | 4.2 V | Lithium Ion/Polymer | 1 A | 6.5 V | Surface Mount | |||||||||
Texas Instruments BQ24081QDRCRQ1 | 125 °C | -40 °C | Current, Timer | 1 | 10-VSON (3x3) | Constant - Programmable | 10-VFDFN Exposed Pad | 4.2 V | Lithium Ion/Polymer | 1 A | 6.5 V | Surface Mount | AEC-Q100 | Automotive | |||||||
Texas Instruments BQ24081EVM | Charge Timer | Battery Charger | Board(s) | BQ24081 | Power Management | Li-Ion / Li-Pol (1 Cell) | |||||||||||||||
Texas Instruments BQ24081DRCTG4 | 85 °C | -40 °C | Current, Timer | 1 | 10-VSON (3x3) | Constant - Programmable | 10-VFDFN Exposed Pad | 4.2 V | Lithium Ion/Polymer | 1 A | 6.5 V | Surface Mount | |||||||||
Texas Instruments BQ24081DRCT | 85 °C | -40 °C | Current, Timer | 1 | 10-VSON (3x3) | Constant - Programmable | 10-VFDFN Exposed Pad | 4.2 V | Lithium Ion/Polymer | 1 A | 6.5 V | Surface Mount | |||||||||
Texas Instruments BQ24081DRCR | 85 °C | -40 °C | Current, Timer | 1 | 10-VSON (3x3) | Constant - Programmable | 10-VFDFN Exposed Pad | 4.2 V | Lithium Ion/Polymer | 1 A | 6.5 V | Surface Mount |
Description
General part information
BQ24081 Series
The bq24080-Q1 and bq24081-Q1 are highly integrated and flexible Li-Ion linear charge devices targeted at space-limited charger applications. They offer an integrated power FET and current sensor, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. An external resistor sets the magnitude of the charge current.
The device charges the battery in three phases: conditioning, constant current, and constant voltage. Charge is terminated based on minimum current. An internal charge timer provides a backup safety for charge termination. The device automatically restarts the charge if the battery voltage falls below an internal threshold. The device automatically enters sleep mode when the ac adapter is removed.
The bq24080-Q1 and bq24081-Q1 are highly integrated and flexible Li-Ion linear charge devices targeted at space-limited charger applications. They offer an integrated power FET and current sensor, high-accuracy current and voltage regulation, charge status, and charge termination, in a single monolithic device. An external resistor sets the magnitude of the charge current.
