RAY-103-3.0(100)
UnknownTE Connectivity Aerospace, Defense and Marine

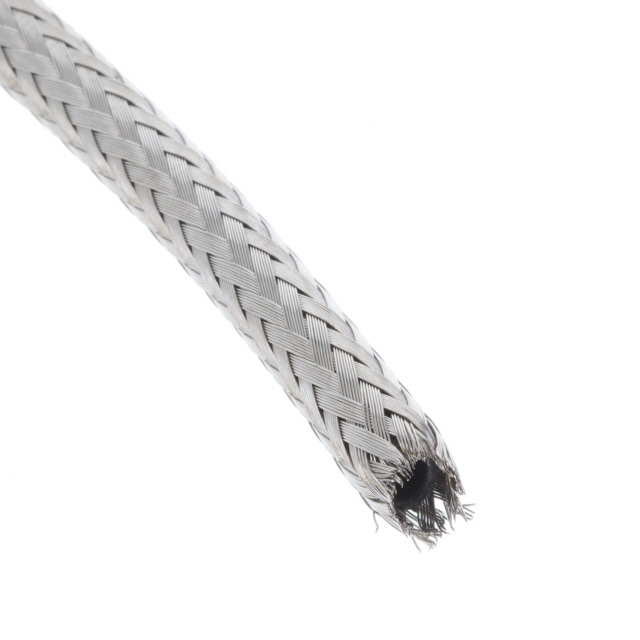

GROUND BRAID TUBE 0.12"DIA X 82'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAY-103-3.0(100)
UnknownTE Connectivity Aerospace, Defense and Marine
GROUND BRAID TUBE 0.12"DIA X 82'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | RAY-103-3.0(100) | RAY-1 Series |
|---|---|---|
| Length | 50 m, 1 m, 25 m | 1 - 50 m |
| Length | 164 ft, 3.3 ft, 82 ft | 3.3 - 164 ft |
| Length | Enter Number of Meters in Order Quantity | Enter Number of Meters in Order Quantity |
| Material | Copper, Nickel Plated | Copper, Tin Plated, Copper, Nickel Plated |
| Number of Carriers | 16 | 16 - 48 |
| Size, Supplied | - | 7.5 mm |
| Size, Supplied [diameter] | 3 mm | 3 - 20 mm |
| Size, Supplied [diameter] | 0.118 in | 0.118 - 0.787 in |
| Spool Size | - | 328.1 - 984.3 ' |
| Spool Size | - | 100 - 300 m |
| Spool Size [custom] | 1312.33 ft | 1312.33 ft |
| Spool Size [custom] | 400 m | 400 m |
| Type | Tubular | Tubular |
| Wire Gauge - Ends | 38 AWG | 36 - 38 AWG |
RAY-1 Series
GROUND BRAID TUBE 0.49"DIA METER
| Part | Length | Type | Length | Length | Number of Carriers | Material | Wire Gauge - Ends | Size, Supplied [diameter] | Size, Supplied [diameter] | Spool Size | Spool Size | Size, Supplied | Spool Size [custom] | Spool Size [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Aerospace, Defense and Marine RAY-101-12.5(100) | Enter Number of Meters in Order Quantity | Tubular | 1 m, 5 m, 25 m, 50 m | 3.3 ft, 16.4 ', 82 ft, 164 ft | 36 | Copper, Tin Plated | 36 AWG | 12.5 mm | 0.492 in | 328.1 ' | 100 m | |||
TE Connectivity Aerospace, Defense and Marine RAY-103-7.5(100) | Enter Number of Meters in Order Quantity | Tubular | 1 m, 5 m, 25 m, 50 m | 3.3 ft, 16.4 ', 82 ft, 164 ft | 24 | Copper, Nickel Plated | 36 AWG | 0.295 in | 984.3 ft | 300 m | 7.5 mm | |||
TE Connectivity Aerospace, Defense and Marine RAY-101-7.5(10) | Tubular | 24 | Copper, Nickel Plated | 36 AWG | 0.295 in | 7.5 mm | ||||||||
TE Connectivity Aerospace, Defense and Marine RAY-103-10.0(100) | Enter Number of Meters in Order Quantity | Tubular | 1 m, 25 m, 50 m | 3.3 ft, 82 ft, 164 ft | 36 | Copper, Nickel Plated | 36 AWG | 10 mm | 0.394 in | |||||
TE Connectivity Aerospace, Defense and Marine RAY-103-4.0(100) | Enter Number of Meters in Order Quantity | Tubular | 5 m, 25 m, 50 m | 16.4 ', 82 ft, 164 ft | 24 | Copper, Nickel Plated | 36 AWG | 4 mm | 0.157 in | 984.3 ft | 300 m | |||
TE Connectivity Aerospace, Defense and Marine RAY-103-3.0(100) | Enter Number of Meters in Order Quantity | Tubular | 1 m, 25 m, 50 m | 3.3 ft, 82 ft, 164 ft | 16 | Copper, Nickel Plated | 38 AWG | 3 mm | 0.118 in | 1312.33 ft | 400 m | |||
TE Connectivity Aerospace, Defense and Marine RAY-103-20.0(10) | Tubular | 48 | Copper, Nickel Plated | 36 AWG | 20 mm | 0.787 in | ||||||||
TE Connectivity Aerospace, Defense and Marine RAY-101-7.5(100) | Enter Number of Meters in Order Quantity | Tubular | 1 m, 5 m, 25 m, 50 m | 3.3 ft, 16.4 ', 82 ft, 164 ft | 24 | Copper, Tin Plated | 36 AWG | 0.295 in | 7.5 mm | 1312.33 ft | 400 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Digi-Spool®, Continuous Spool | 1 | $ 8.56 | |
| 5 | $ 8.17 | |||
| 10 | $ 6.85 | |||
| Spool | 1 | $ 0.10 | ||
| 1 | $ 189.47 | |||
| 2 | $ 0.05 | |||
| 3 | $ 0.03 | |||
| 5 | $ 182.71 | |||
| 5 | $ 0.02 | |||
| 7 | $ 0.01 | |||
Description
General part information
RAY-1 Series
Tubular Ground Braid 0.118" (3.00mm) - Inner Dia X 82.0' (25.00m) 38 AWG
