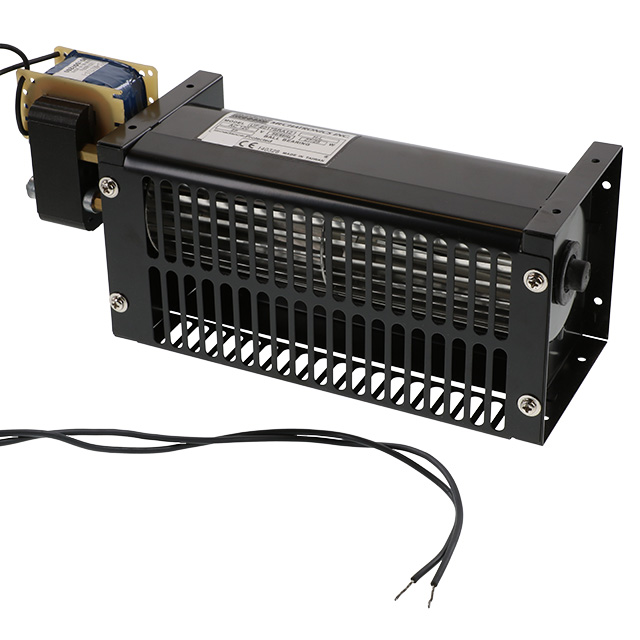

UF6017SBA12H-L

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 266X98X90MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 120VAC 266X98X90MM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 31.88

General part information

Fan Blower, Cross Flow 120VAC Rectangular - 266mm L x 90mm H Ball 89.0 CFM (2.49m³/min) 2 Wire Leads

Technical documentation and resources

Part	RPM	Voltage - Rated	Material - Blade	Noise	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Weight	Weight	Size / Dimension [x]	Size / Dimension [z]	Power (Watts)	Termination	Air Flow	Air Flow	Material - Frame	Static Pressure	Static Pressure	Width [y]	Fan Type	Bearing Type	Current Rating (Amps)	Approval Agency
Mechatronics Fan Group UF6017SBA12H-L	2000 RPM	120 VAC	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	2.8 lbs	1.3 kg	266 mm	90 mm	25 W	2 Wire Leads	2.49 mł/min	89 CFM	Steel	0.22 in H2O	54.8 Pa	98 mm	Blower, Cross Flow	Ball	400 mA	CE, TUV
Mechatronics Fan Group UF6017SBA23H-L	2000 RPM	230 VAC	Aluminum	42 dB	70 °C	70 °C	-40 °C	-40 °C	2.8 lbs	1.3 kg	266 mm	90 mm	25 W	2 Wire Leads	2.49 mł/min	89 CFM	Steel	0.22 in H2O	54.8 Pa	98 mm	Blower, Cross Flow	Ball	0.2 A	CE, TUV
