SAN.M13.GLA.6GZ

Active

LEMO

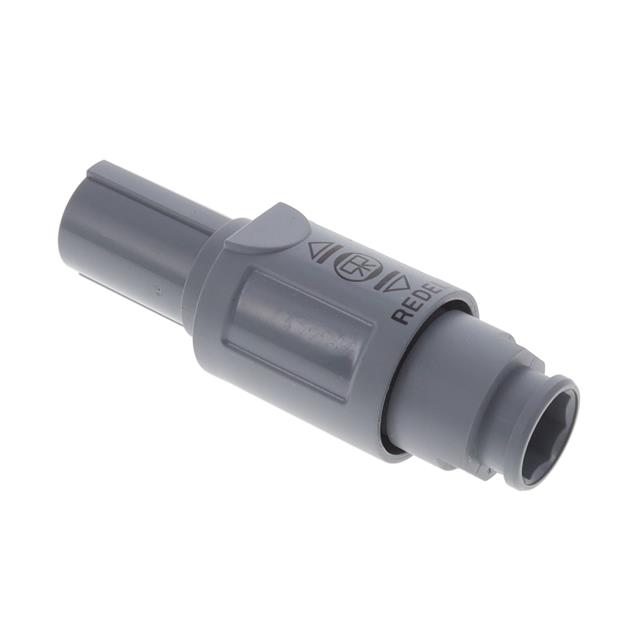

CONN PLUG MALE 13P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SAN.M13.GLA.6GZ

Active

LEMO

CONN PLUG MALE 13P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SAN.M13.GLA.6GZ	SAN.M13 Series

Applications	Medical, Industrial, Automotive, Testing Equipment & Measurement	Medical, Industrial, Automotive, Testing Equipment & Measurement
Backshell Material, Plating	Sulfone	Sulfone
Cable Opening	-	3.9 mm
Cable Opening	-	0.154 in
Cable Opening	-	2.5 mm
Cable Opening	-	0.098 in
Cable Opening [custom]	0.209 in, 0.256 in	0.209 - 0.295 in
Cable Opening [custom]	6.5 mm, 5.3 mm	5.3 - 7.5 mm
Color	Gray	Gray, Blue
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Current Rating (Amps)	4 A	4 A
Fastening Type	Push-Pull	Push-Pull
Features	Backshell	Backshell
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	13	13
Operating Temperature [Max]	170 °C	170 °C
Operating Temperature [Min]	-50 °C	-50 °C
Orientation	N	N
Primary Material	Plastic	Plastic
Shell Material	Sulfone	Sulfone
Shell Size - Insert	M13	M13
Shielding	Unshielded	Unshielded

SAN.M13 Series

CONN PLUG MALE 13P GOLD SLDR CUP

Part	Insert Material	Connector Type	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Mounting Type	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Orientation	Backshell Material, Plating	Contact Finish - Mating	Features	Color	Shell Material	Primary Material	Current Rating (Amps)	Shielding	Ingress Protection	Applications	Number of Positions	Cable Opening [custom]	Cable Opening [custom]
LEMO SAN.M13.GLA.3G	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)	3.9 mm	0.154 in	2.5 mm	0.098 in	N	Sulfone	Gold	Backshell	Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13
LEMO SAN.M13.GLA.6GZ	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)					N	Sulfone	Gold	Backshell	Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO SAN.M13.GLA.6G	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)					N	Sulfone	Gold	Backshell	Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO SAN.M13.GLA.3GZ	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)	3.9 mm	0.154 in	2.5 mm	0.098 in	N	Sulfone	Gold	Backshell	Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13
LEMO SAN.M13.GLA.6A	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)					N	Sulfone	Gold	Backshell	Blue, Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13	0.209 in, 0.256 in	5.3 mm, 6.5 mm
LEMO SAN.M13.GLA.7GZ	Polyetheretherketone (PEEK)	Male Pins, Plug	M13	-50 °C	170 °C	Push-Pull	Free Hanging (In-Line)					N	Sulfone	Gold	Backshell	Gray	Sulfone	Plastic	4 A	Unshielded	IP50	Automotive, Industrial, Medical, Testing Equipment & Measurement	13	0.26 in, 0.295 in	6.6 mm, 7.5 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 46.60
		10	$ 36.07
		25	$ 32.73
		50	$ 30.47
		100	$ 28.43
		250	$ 26.02

Description

General part information

SAN.M13 Series

13 Position Circular Connector Plug, Male Pins Solder Cup
