WR-100SB-VF-N1

Active

CONN RCPT 100POS SMD GOLD

Active

CONN RCPT 100POS SMD GOLD

Description

General part information

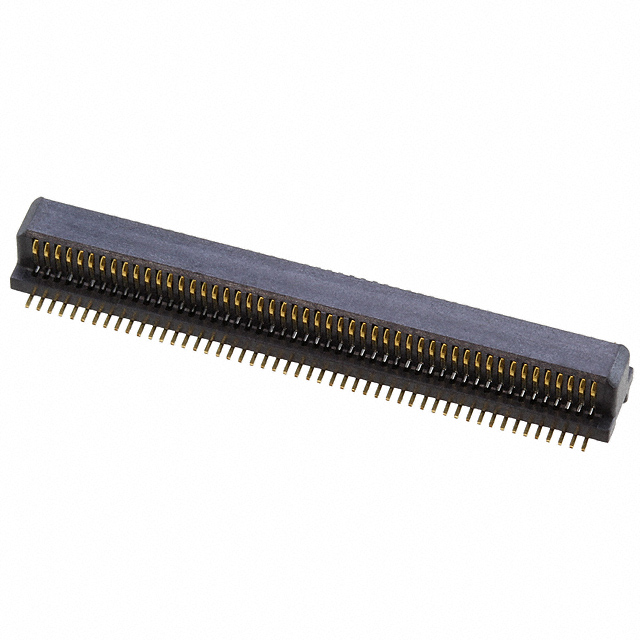

100 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold

Parameters and characteristics for this part

Specification	WR-100SB-VF-N1

Connector Type	Center Strip Contacts, Receptacle
Contact Finish	Gold
Contact Finish Thickness	4 µin
Features	Board Guide
Height Above Board	0.128 in
Mated Stacking Height Options	6mm, 5mm, 4mm
Mounting Type	Surface Mount
Number of Positions	100
Number of Rows	2
Pitch	0.02 in

Part	Mated Stacking Height Options	Connector Type	Mounting Type	Pitch	Contact Finish Thickness	Number of Rows	Number of Positions	Features	Height Above Board	Contact Finish
JAE Electronics WR-100SB-VF-N1	4mm 5mm 6mm	Center Strip Contacts Receptacle	Surface Mount	0.02 in	4 µin	2	100	Board Guide	0.128 in	Gold
JAE Electronics WR-100S-VF-N1-R1500	4mm 5mm 6mm	Center Strip Contacts Receptacle	Surface Mount	0.02 in	4 µin	2	100		0.128 in	Gold
