2302-6211-TG
Active3M

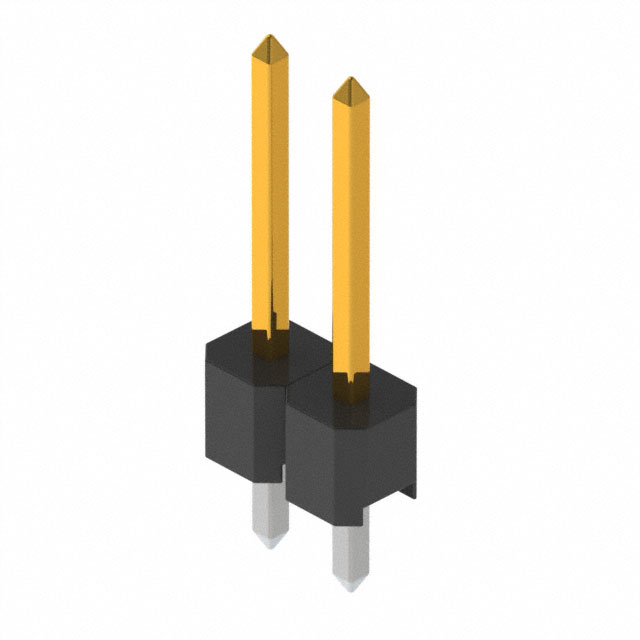

CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2302-6211-TG
Active3M
CONN HEADER VERT 2POS 2.54MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 2302-6211-TG | 2302 Series |
|---|---|---|
| Connector Type | Header | Header |
| Contact Finish - Mating | Gold | Gold, Tin-Lead |
| Contact Finish - Post | Tin-Lead | Tin-Lead |
| Contact Finish Thickness - Mating | 10 çin, 10 Ąin | 10 çin |
| Contact Finish Thickness - Mating | 0.25 çm, 0.25 Ąm | 0.25 çm |
| Contact Finish Thickness - Post | 100 Ąin, 100 µin | 100 µin |
| Contact Finish Thickness - Post | 2.54 Ąm, 2.54 µm | 2.54 µm |
| Contact Length - Mating | - | 5.84 mm |
| Contact Length - Mating [x] | 0.318 " | 0.23 - 0.318 in |
| Contact Length - Mating [x] | 8.08 mm | 8.08 mm |
| Contact Length - Post [x] | 0.12 in | 0.12 in |
| Contact Length - Post [x] | 3.05 mm | 3.05 mm |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Shape | Square | Square |
| Contact Type | Male Pin | Male Pin |
| Current Rating (Amps) | 3 A | 3 A |
| Fastening Type | Push-Pull | Push-Pull |
| Insulation Color | Black | Black |
| Insulation Height | 0.1 in | 0.1 in |
| Insulation Height | 2.54 mm | 2.54 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Right Angle, Through Hole |
| Number of Positions | 2 | 2 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 - 2 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Overall Contact Length | 0.538 " | 0.45 - 0.538 " |
| Overall Contact Length | 13.67 mm | 11.43 - 13.67 mm |
| Pitch - Mating | 0.1 in | 0.1 in |
| Pitch - Mating | 2.54 mm | 2.54 mm |
| Row Spacing - Mating | - | 2.54 mm |
| Row Spacing - Mating | - | 0.1 in |
| Shrouding | Unshrouded | Unshrouded |
| Style | Board to Board, Cable | Board to Board, Cable |
| Termination | Solder | Solder |
2302 Series
CONN HEADER R/A 2POS 2.54MM
| Part | Style | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Current Rating (Amps) | Insulation Height | Insulation Height | Contact Material | Material Flammability Rating | Contact Finish - Post | Insulation Color | Termination | Contact Length - Post [x] | Contact Length - Post [x] | Number of Rows | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Contact Shape | Number of Positions | Pitch - Mating | Pitch - Mating | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Mating | Contact Length - Mating [x] | Contact Length - Mating | Connector Type | Number of Positions Loaded | Fastening Type | Shrouding | Overall Contact Length | Overall Contact Length | Contact Length - Mating [x] | Row Spacing - Mating [x] | Row Spacing - Mating [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Board to Board, Cable | Through Hole, Right Angle | 10 çin | 0.25 çm | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 1 | 105 ░C | -55 °C | Male Pin | Square | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Gold | 0.23 in | 5.84 mm | Header | All | Push-Pull | Unshrouded | ||||||
Board to Board, Cable | Through Hole | 10 çin, 10 Ąin | 0.25 çm, 0.25 Ąm | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 1 | 105 ░C | -55 °C | Male Pin | Square | 2 | 0.1 in | 2.54 mm | 2.54 Ąm, 2.54 µm | 100 Ąin, 100 µin | Gold | 0.318 " | Header | All | Push-Pull | Unshrouded | 0.538 " | 13.67 mm | 8.08 mm | ||||
Board to Board, Cable | Through Hole | 10 çin | 0.25 çm | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 2 | 105 ░C | -55 °C | Male Pin | Square | 2 | 2.54 µm | 100 µin | Gold | 0.318 " | Header | All | Push-Pull | Unshrouded | 0.538 " | 13.67 mm | 8.08 mm | 2.54 mm | 0.1 in | ||||
Board to Board, Cable | Through Hole | 10 çin | 0.25 çm | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 1 | 105 ░C | -55 °C | Male Pin | Square | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Gold | 0.23 in | 5.84 mm | Header | All | Push-Pull | Unshrouded | 0.45 " | 11.43 mm | ||||
Board to Board, Cable | Through Hole, Right Angle | 10 çin | 0.25 çm | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 1 | 105 ░C | -55 °C | Male Pin | Square | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Gold | 0.318 " | Header | All | Push-Pull | Unshrouded | 8.08 mm | ||||||
Board to Board, Cable | Through Hole | 3 A | 0.1 in | 2.54 mm | Copper Alloy | UL94 V-0 | Tin-Lead | Black | Solder | 0.12 in | 3.05 mm | 1 | 105 ░C | -55 °C | Male Pin | Square | 2 | 0.1 in | 2.54 mm | 2.54 µm | 100 µin | Tin-Lead | 0.23 in | 5.84 mm | Header | All | Push-Pull | Unshrouded | 0.45 " | 11.43 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.28 | |||
| 5000 | $ 0.25 | |||
| 10000 | $ 0.24 | |||
Description
General part information
2302 Series
Connector Header Through Hole 2 position 0.100" (2.54mm)
