1318747-1

Active

TE Connectivity AMP Connectors

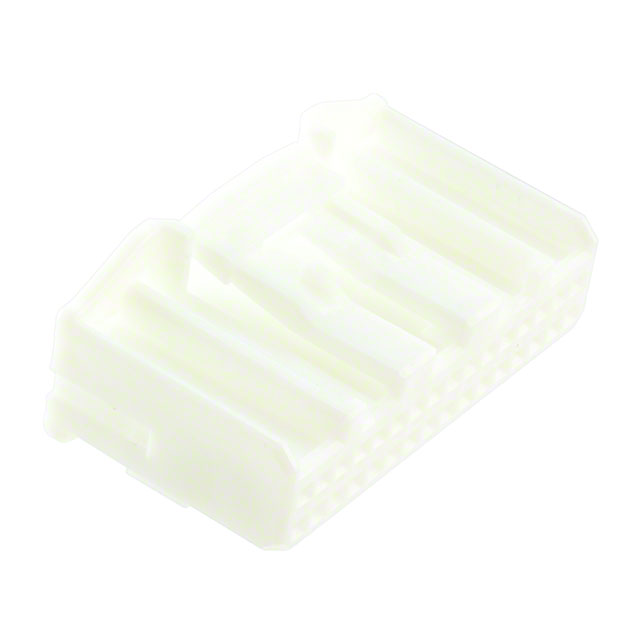

CONN PLUG HSG 32POS 2.20MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN PLUG HSG 32POS 2.20MM

Technical Specifications

Parameters and characteristics for this part

Specification	1318747-1

Color	Natural
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Locking Ramp
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Pitch [x]	0.087 in
Pitch [x]	2.2 mm
Row Spacing [x]	0.118 in
Row Spacing [x]	3 mm

CONN PLUG HSG 32POS 2.20MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Insulation Material	Pitch [x]	Pitch [x]	Note	Contact Termination	Fastening Type	Color	Row Spacing [x]	Row Spacing [x]	Connector Type	Contact Type	Mounting Type
TE Connectivity AMP Connectors 1318747-1	-30 ░C	105 ░C	2	Polybutylene Terephthalate (PBT)	0.087 in	2.2 mm	Contacts Not Included	Crimp	Locking Ramp	Natural	0.118 in	3 mm	Plug	Female Socket	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

32 Rectangular Connectors - Housings Plug Natural 0.087" (2.20mm)
