3386P Series

...

Part	Adjustment Type	Size / Dimension Length	Size / Dimension Shape	Size / Dimension Width	Tolerance	Temperature Coefficient	Number of Turns	Termination Style	Mounting Type	Power (Watts)	Power (Watts) Options	Resistance	Resistive Material
Bourns Inc. 3386P-DF6-201	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	200 Ohm	Cermet
Bourns Inc. 3386P-1-221	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	220 Ohm	Cermet

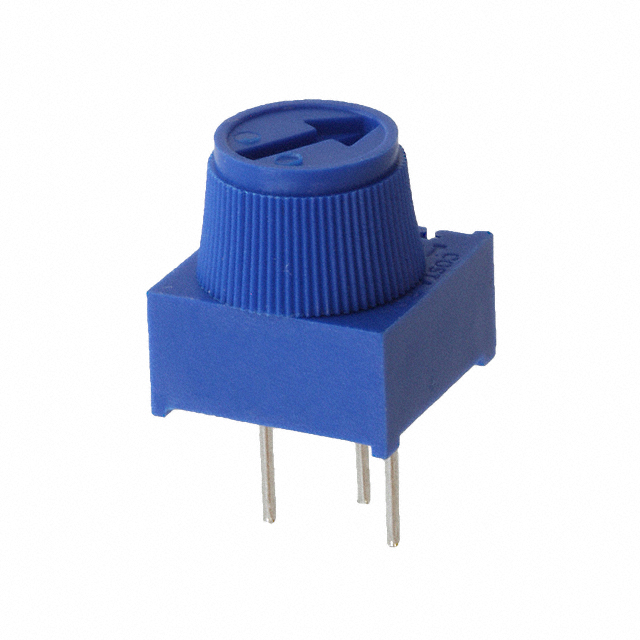

Bourns Inc. 3386P-1-204TLF	Top Finger Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	200 kOhm	Cermet
Bourns Inc. 3386P-DF6-101	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	100 Ohms	Cermet
Bourns Inc. 3386P-1-224LF	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	220 kOhm	Cermet
Bourns Inc. 3386P-1-554LF	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	550 kOhms	Cermet
Bourns Inc. 3386P-1-222LF	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	2.2 kOhm	Cermet
Bourns Inc. 3386P-1-104	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	100 kOhm	Cermet
Bourns Inc. 3386P-1-254	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	250 kOhm	Cermet
Bourns Inc. 3386P-1-502LF	Top Adjustment	0.375 in	Square	0.375 in	10 %	100 ppm/°C	1 turns	PC Pins	Through Hole	500 mW	1/2W	5 kOhm	Cermet

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
