T2111322201-000
ActiveTE Connectivity AMP Connectors
HMN-HD1-32-F,8.45
Deep-Dive with AI
Search across all available documentation for this part.
T2111322201-000
ActiveTE Connectivity AMP Connectors
HMN-HD1-32-F,8.45
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2111322201-000 | T2111322201 Series |
|---|---|---|
| Color | Gray | Gray |
| Connector Type | Module without Contacts | Module without Contacts |
| Current Rating (Amps) | 2.2 A | 2.2 A |
| Gender | Female | Female |
| Housing Material | Polybutylene Terephthalate (PBT) | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Termination Style | Crimp | Crimp |
| Voltage Rating | 32 V | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 17.50 | |
| 10 | $ 16.30 | |||
T2111322201 Series
HMN-HD1-32-F,8.45
| Part | Termination Style | Voltage Rating | Connector Type | Operating Temperature [Max] | Operating Temperature [Min] | Housing Material | Gender | Current Rating (Amps) | Material Flammability Rating | Color |
|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2111322201-000 | Crimp | 32 V | Module without Contacts | 125 °C | -40 °C | Polybutylene Terephthalate (PBT) | Female | 2.2 A | UL94 V-0 | Gray |
TE Connectivity AMP Connectors T2111322201-001 | Crimp | 32 V | Module without Contacts | 125 °C | -40 °C | Polybutylene Terephthalate (PBT) | Female | 2.2 A | UL94 V-0 | Gray |
Description
General part information
T2111322201 Series

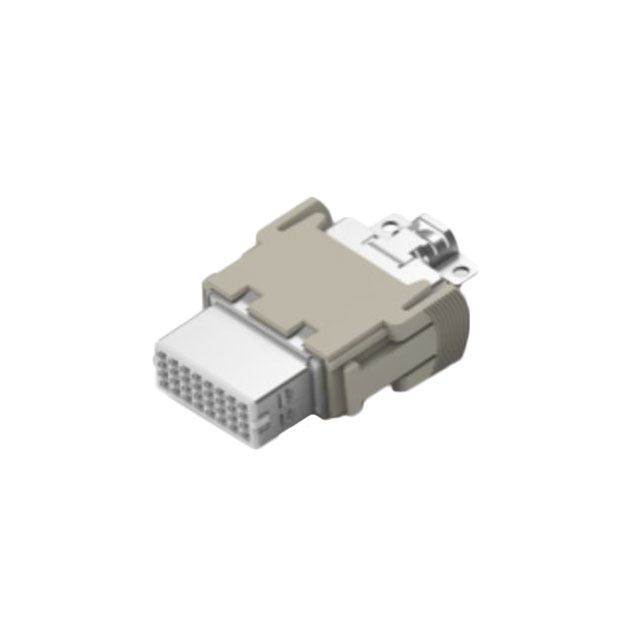

Female Module without Contacts Gray 32 Position Crimp
