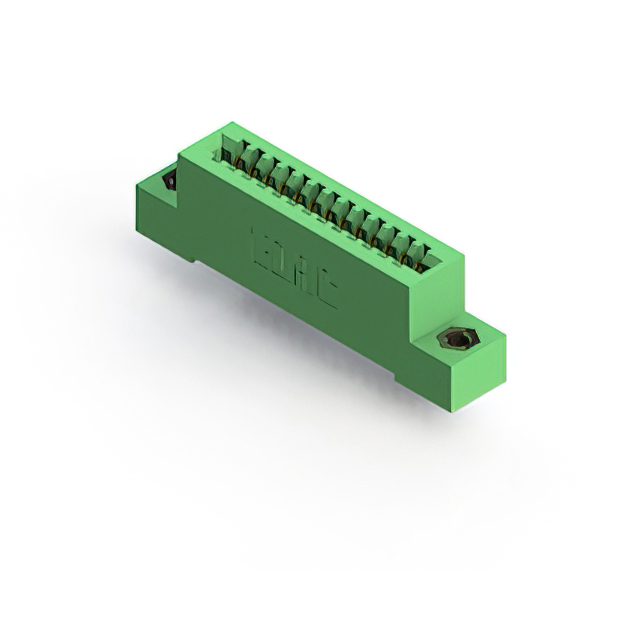

842-013-541-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
842-013-541-107
ActiveEDAC Inc.
CONN EDGE SINGLE FML 13POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 842-013-541-107 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Top Opening, Flush Mount, M3, Threaded Insert |
| Gender | Female |
| Material - Insulation | Diallyl Phthalate (DAP) |
| Mounting Type | Through Hole |
| Number of Positions | 13 |
| Number of Positions/Bay/Row [custom] | 13 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
842-013 Series
| Part | Read Out | Card Type | Contact Finish | Material - Insulation | Gender | Pitch [x] | Pitch [x] | Contact Material | Number of Positions/Bay/Row [custom] | Termination Rows | Contact Type | Flange Feature | Number of Rows | Color | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Termination | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Solder | Through Hole | ||
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | ||
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | ||
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Floating Bobbin Flush Mount | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | 0.116 in | 2.95 mm |
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | ||
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount Top Opening Unthreaded | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | 0.156 in | 3.96 mm |
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Floating Bobbin Flush Mount | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | 0.116 in | 2.95 mm |
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount Top Opening Unthreaded | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole | 0.128 " | 3.25 mm |
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount Side Opening Unthreaded | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Solder Eyelet(s) | Through Hole | 0.128 " | 3.25 mm |
EDAC Inc. | Single | Non Specified - Single Edge | Gold | Diallyl Phthalate (DAP) | Female | 2.54 mm | 0.1 in | Copper Alloy | 13 | 1 | Cantilever | Flush Mount M3 Threaded Insert Top Opening | 1 | Green | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 10 Áin | 0.25 Ám | 125 °C | -40 °C | 13 | Wire Wrap | Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 81.40 | |
Description
General part information
842-013 Series
13 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
