Q-0I01M0001.25M

Active

Amphenol Custom Cable

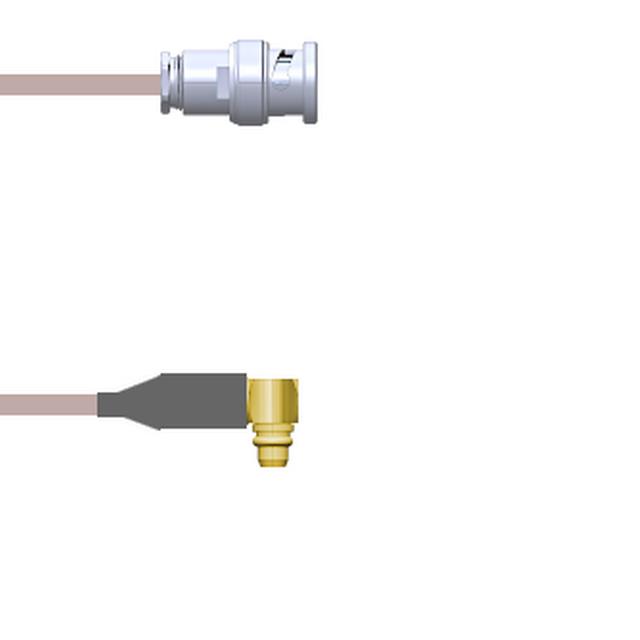

CBL ASSY BNC-MMCX PLG-PLG 9.843"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0I01M0001.25M

Active

Amphenol Custom Cable

CBL ASSY BNC-MMCX PLG-PLG 9.843"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0I01M0001.25M

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	MMCX Plug, Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length [x]	9.843 "
Length [x]	250 mm
Overall Impedance	50 Ohms
Style	BNC to MMCX

Q-0I01M0 Series

Part	2nd Connector Mounting Type	1st Contact Gender	Frequency - Max [Max]	Color	Length	Length	2nd Contact Gender	2nd Connector	Features	1st Connector	Cable Type	Style	1st Connector Mounting Type	Overall Impedance	Length [x]	Length [x]	Length [x]	Length
Amphenol Custom Cable Q-0I01M0001012i	Free Hanging (In-Line)	Male	4 GHz	Copper	12 "	304.8 mm	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0I01M0001018i	Free Hanging (In-Line)	Male	4 GHz	Copper			Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0I01M0001.25M	Free Hanging (In-Line)	Male	4 GHz	Copper			Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms		250 mm	9.843 "
Amphenol Custom Cable Q-0I01M0001036i	Free Hanging (In-Line)	Male	4 GHz	Copper	36 in	91.44 cm	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0I01M0001006i	Free Hanging (In-Line)	Male	4 GHz	Copper	6 in	152.4 mm	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0I01M0001108i	Free Hanging (In-Line)	Male	4 GHz	Copper	108 in	2.7 m	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms				9 ft
Amphenol Custom Cable Q-0I01M0001072i	Free Hanging (In-Line)	Male	4 GHz	Copper	72 in	1.8 m	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms				6 ft
Amphenol Custom Cable Q-0I01M0001024i	Free Hanging (In-Line)	Male	4 GHz	Copper	24 "	609.6 mm	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms
Amphenol Custom Cable Q-0I01M0001003M	Free Hanging (In-Line)	Male	4 GHz	Copper	118.1 in	3 m	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms				9.8 '
Amphenol Custom Cable Q-0I01M00010.5M	Free Hanging (In-Line)	Male	4 GHz	Copper	19.69 "	50 cm	Male	MMCX Plug Right Angle	Shielded	BNC Plug	RG-178	BNC to MMCX	Free Hanging (In-Line)	50 Ohms

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 88.84
		25	$ 87.11
		50	$ 85.37
		100	$ 83.64
		250	$ 81.91

Description

General part information

Q-0I01M0 Series

Cable Assembly Coaxial BNC to MMCX RG-178 9.843" (250.00mm)

Documents

Technical documentation and resources

No documents available
