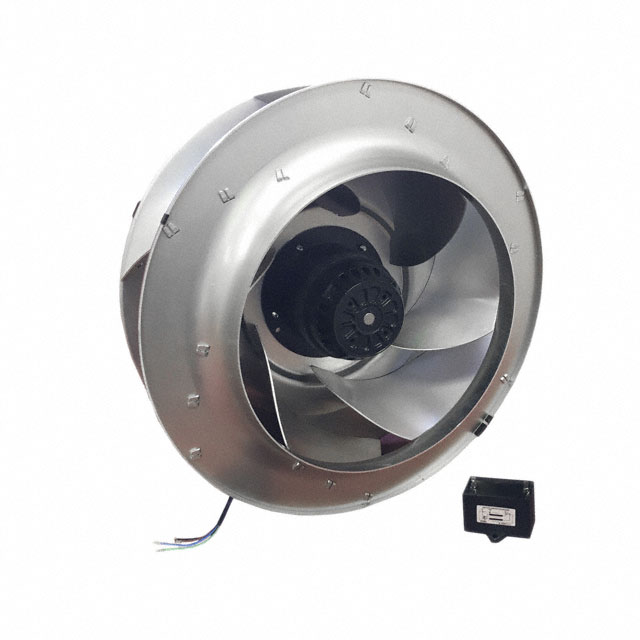

OAB400-22-1

Active

Orion Fans

FAN BLOWER, CENTRIFUGAL, 230 VAC, AC, 404 MM, 162 MM, 1900 CFM

Search across all available documentation for this part.

Active

Orion Fans

FAN BLOWER, CENTRIFUGAL, 230 VAC, AC, 404 MM, 162 MM, 1900 CFM

Technical Specifications

Parameters and characteristics for this part

Specification	OAB400-22-1

Air Flow	1900 CFM
Air Flow	53.2 m³/min
Bearing Type	Ball
Current Rating (Amps)	1.26 A
Fan Type	Motorized Impellers
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	40000 Hrs
Material - Blade	Metal
Material - Frame	Aluminum
Noise	73 dB(A)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	287 W
RPM	1250 RPM
Size / Dimension [diameter]	404 mm
Static Pressure	1345.1 Pa
Static Pressure	5.4 in H2O
Termination	4 Wire Leads
Voltage - Rated	230 VAC
Weight	5.4 kg
Weight	12 lbs
Width [y]	162.4 mm

Part	Ingress Protection	Size / Dimension [diameter]	Noise	RPM	Voltage - Rated	Material - Blade	Air Flow	Air Flow	Termination	Weight	Weight	Current Rating (Amps)	Power (Watts)	Fan Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Lifetime @ Temp.	Width [y]	Features	Material - Frame	Static Pressure	Static Pressure	Bearing Type
Orion Fans OAB400-22-1	IP55 - Dust Protected Water Resistant	404 mm	73 dB(A)	1250 RPM	230 VAC	Metal	1900 CFM	53.2 m³/min	4 Wire Leads	5.4 kg	12 lbs	1.26 A	287 W	Motorized Impellers	50 °C	-40 °C	-40 °C	50 °C	40000 Hrs	162.4 mm	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Aluminum	1345.1 Pa	5.4 in H2O	Ball

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Motorized Impellers 230VAC Round - 404mm Dia Ball 1900.0 CFM (53.20m³/min) 4 Wire Leads
