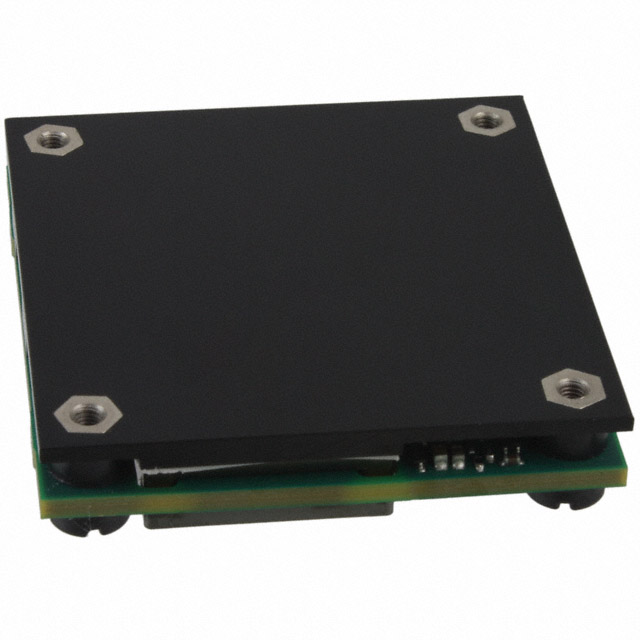

HPH-3.3/70-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 231W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HPH-3.3/70-D48NB-C
ActiveMurata Power Solutions Inc.
DC DC CONVERTER 3.3V 231W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HPH-3.3/70-D48NB-C |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 70 A |
| Efficiency | 90 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 9-DIP Module, 1/2 Brick |
| Power (Watts) | 231 W |
| Size / Dimension [x] | 2.4 in |
| Size / Dimension [x] | 61 mm |
| Size / Dimension [y] | 2.3 " |
| Size / Dimension [y] | 58.4 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
HPH-3.3 Series
DC DC CONVERTER 3.3V 231W
| Part | Voltage - Output 1 | Applications | Number of Outputs | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Power (Watts) | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Voltage - Input (Min) [Min] | Voltage - Isolation | Package / Case | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. HPH-3.3/70-D48NB-C | 3.3 V | ITE (Commercial) | 1 | Through Hole | 85 °C | -40 °C | 90 % | 231 W | 2.4 in | 0.4 " | 61 mm | 2.3 " | 58.4 mm | 10.2 mm | 36 V | 2250 VDC | 9-DIP Module, 1/2 Brick | 75 V | 70 A | Isolated Module |
Description
General part information
HPH-3.3 Series
Isolated Module DC DC Converter 1 Output 3.3V 70A 36V - 75V Input
