637-078-232-247

Active

EDAC Inc.

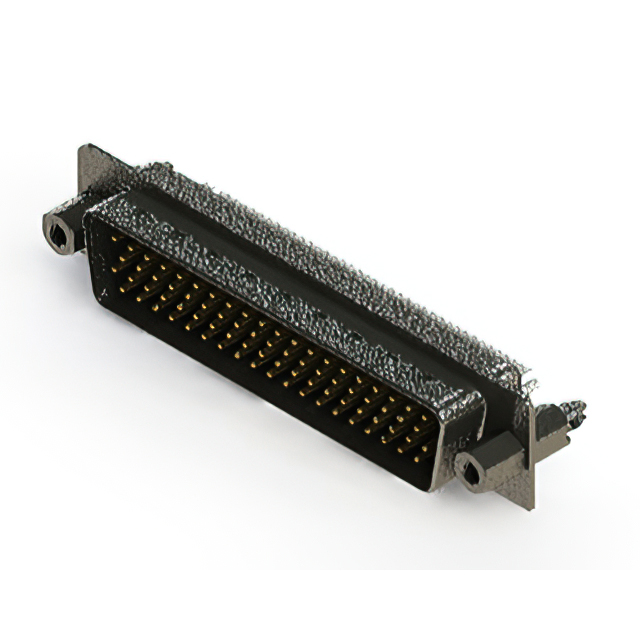

CONN D-SUB HD PLG 78POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

637-078-232-247

Active

EDAC Inc.

CONN D-SUB HD PLG 78POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	637-078-232-247

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polyester Thermoplastic
Features	Board Lock, Shielded, Grounding Indents
Flange Feature	4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	78
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C

637-078 Series

...

Part	Contact Finish	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Features	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Color	Material Flammability Rating	Connector Type	Contact Type	Flange Feature	Connector Style	Mounting Type	Termination	Contact Finish Thickness	Shell Material, Finish
EDAC Inc. 637-078-632-241	Gold	3 A	0.76 Ám	30 Áin	Brass	Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Housing/Shell (Unthreaded)	D-Sub High Density	Free Hanging (In-Line)
EDAC Inc. 637-078-632-243	Gold	3 A	0.76 Ám	30 Áin	Brass	Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Female Screwlock (4-40) Mating Side	D-Sub High Density	Free Hanging (In-Line)
EDAC Inc. 637-078-230-041	Gold	3 A			Brass	Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Housing/Shell (Unthreaded)	D-Sub High Density	Panel Mount Through Hole	Solder	Flash	Nickel Plated Steel
EDAC Inc. 637-078-330-243	Gold	3 A	0.38 µm	15 µin	Brass	Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Female Screwlock (4-40) Mating Side	D-Sub High Density	Panel Mount Through Hole	Solder
EDAC Inc. 637-078-232-247	Gold	3 A			Brass	Board Lock Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	4-40	D-Sub High Density	Free Hanging (In-Line)		Flash
EDAC Inc. 637-078-232-062	Gold	3 A			Brass	Grounding Indents Shielded	78	125 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Housing/Shell (4-40)	D-Sub High Density	Free Hanging (In-Line)		Flash	Nickel Plated Steel
EDAC Inc. 637-078-630-263	Gold	3 A	0.76 Ám	30 Áin	Brass	Grounding Indents Shielded	78	125 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Female Screwlock (4-40) Mating Side	D-Sub High Density	Panel Mount Through Hole	Solder
EDAC Inc. 637-078-630-042	Gold	3 A	0.76 Ám	30 Áin	Brass	Grounding Indents Shielded	78	85 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Housing/Shell (4-40)	D-Sub High Density	Panel Mount Through Hole	Solder		Nickel Plated Steel
EDAC Inc. 637-078-230-262	Gold	3 A			Brass	Grounding Indents Shielded	78	125 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Housing/Shell (4-40)	D-Sub High Density	Panel Mount Through Hole	Solder	Flash
EDAC Inc. 637-078-330-263	Gold	3 A	0.38 µm	15 µin	Brass	Grounding Indents Shielded	78	125 °C	-55 °C	Polyester Thermoplastic	Black	UL94 V-0	Male Pins Plug	Signal	Female Screwlock (4-40) Mating Side	D-Sub High Density	Panel Mount Through Hole	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	50	$ 7.88

Description

General part information

637-078 Series

78 Position D-Sub, High Density Plug, Male Pins Connector
