485003-1
ActiveTE Connectivity AMP Connectors
RING IS 058 DIA 020 NPST ROHS COMPLIANT: YES
485003-1
ActiveTE Connectivity AMP Connectors
RING IS 058 DIA 020 NPST ROHS COMPLIANT: YES
Description
General part information
485003 Series

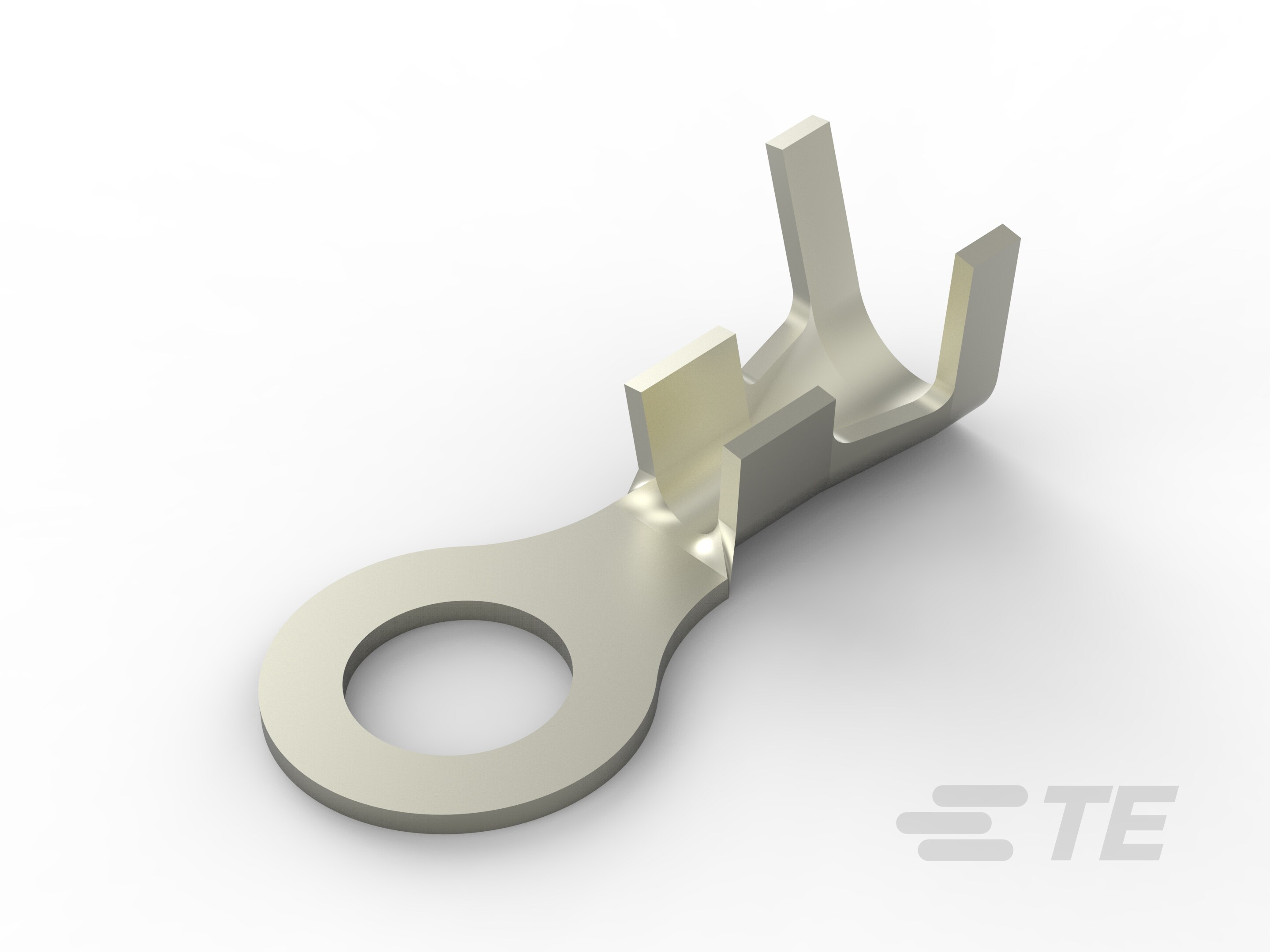

Closed Ring Tongue Terminal, 22 – 18 AWG, #8 / M4 Stud, 4.34 mm [.171 in] Stud Diameter, Open Barrel, Straight, Nickel Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 485003-1 |
|---|---|
| Contact Finish | Nickel |
| Contact Material | Steel |
| Insulation | Non-Insulated |
| Insulation Diameter (Max) | 0.17 in |
| Insulation Diameter (Min) | 0.12 in |
| Length - Overall | 0.637 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.02 in |
| Width - Outer Edges | 0.296 in |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
