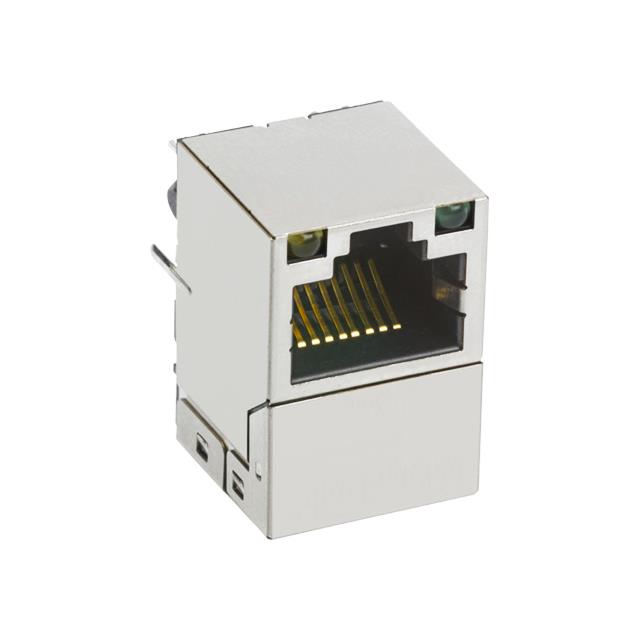

1840420-1

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 100 BASE-T

Part	Height Above Board [z]	Height Above Board [z]	Connector Type	Termination	Mounting Type	LED Color	Orientation	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Features	Contact Material	Tab Direction	Number of Rows	Housing Material	Shield Material	Shielding	Applications	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]
TRP Connector B.V. 1840420-1	16.51 mm	0.65 "	RJ45	Solder	Through Hole	Does Not Contain LED	Vertical	50 µin	1.27 µm	Gold	Board Guide	Phosphor Bronze	User Selectable	1	Thermoplastic	Brass	Shielded	10/100 Base-T, AutoMDIX	1	70 °C	0 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
