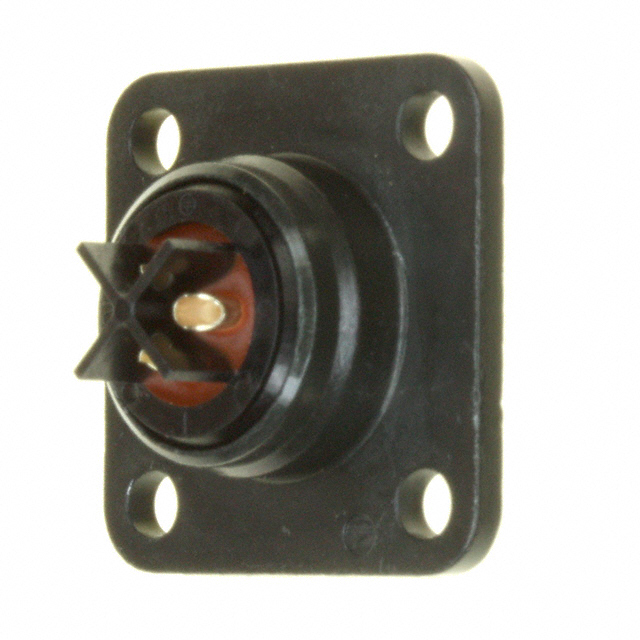

JN2AS04MK2-R
JAE Electronics
CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
Search across all available documentation for this part.
JN2AS04MK2-R
JAE Electronics
CONN RCPT MALE 4P SOLDER CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | JN2AS04MK2-R |
|---|---|
| Color | Black |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Silver |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 5 A |
| Fastening Type | Push-Twist |
| Features | Ground |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Synthetic Resin |
| Mounting Feature | Flange |
| Number of Positions | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Zinc |
| Shell Material | Zinc Alloy |
| Shell Size - Insert | S |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 36 | $ 13.37 | |
Description
General part information
JN2AS04M Series
4 (3 + PE) Position Circular Connector Receptacle, Male Pins Solder Cup
