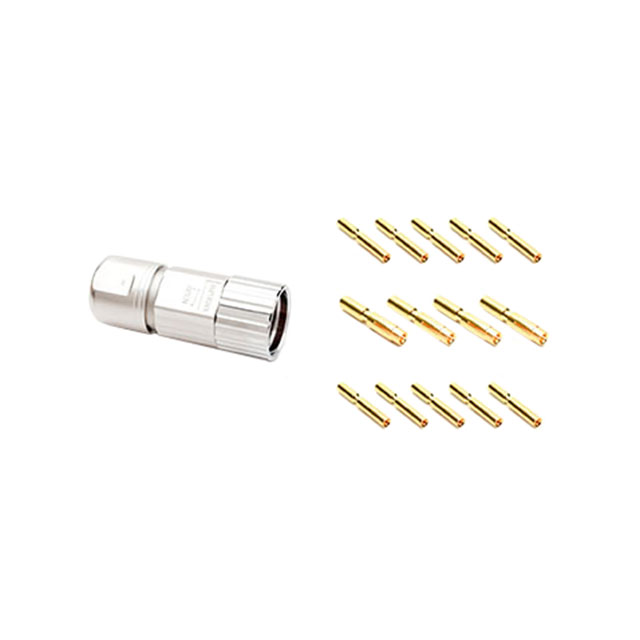

Specification	MB7CKN0900-S3-KIT

Color	Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Current Rating Options	10A, 30A
Fastening Type	Threaded
Features	Coupling Nut, Backshell
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Operating Temperature (Max)	130 °C
Operating Temperature (Min)	-20 °C
Orientation	Keyed
Position Types	Power, PE
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	M23-9
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 V
Voltage Rating (Type)	DC

M23 Elite Series

Part	Ingress Protection Description	Ingress Protection IP Rating	Features	Shell Size - Insert	Contact Size	Number of Positions	Shell Material	Orientation	Shielding	Contact Type	Type	Connector Type	Housing Color	Material Flammability Rating	Mounting Type	Shell Finish	Fastening Type	Primary Material	Termination	Voltage Rating	Voltage Rating (Type)	Mounting Feature	Operating Temperature (Min)	Operating Temperature (Max)	Contact Finish - Mating	Current Rating	Color	Insert Material	Note	Position Types	Contact Shape	Current Rating Options
McGill Microwave Systems MA7CAP1200-S2	Dust Tight Waterproof	IP67	Backshell Coupling Nut	M23-12	1 mm	12	Zinc Die Cast	N (Normal)	Shielded	Crimp	For Female Sockets or Male Pins	Plug Housing	Silver	UL94 V-0	Free Hanging (In-Line)	Nickel	Threaded
McGill Microwave Systems MA5RAE1602-KIT	Dust Tight Waterproof	IP67	Backshell Rotatable	M23-16		16	Zinc Die Cast	N (Normal)				Male Pins Receptacle			Panel Mount Right Angle	Nickel	Threaded	Metal	Crimp	125 V	DC	Flange	-20 °C	130 °C	Gold	9 A	Silver
McGill Microwave Systems MA7RAP1202-KIT	Dust Tight Waterproof	IP67	Backshell Rotatable	M23-12		12	Zinc Die Cast	N (Normal)				Male Pins Receptacle			Panel Mount Right Angle	Nickel	Threaded	Metal	Crimp	160 V		Flange	-20 °C	130 °C	Gold	10 A	Silver

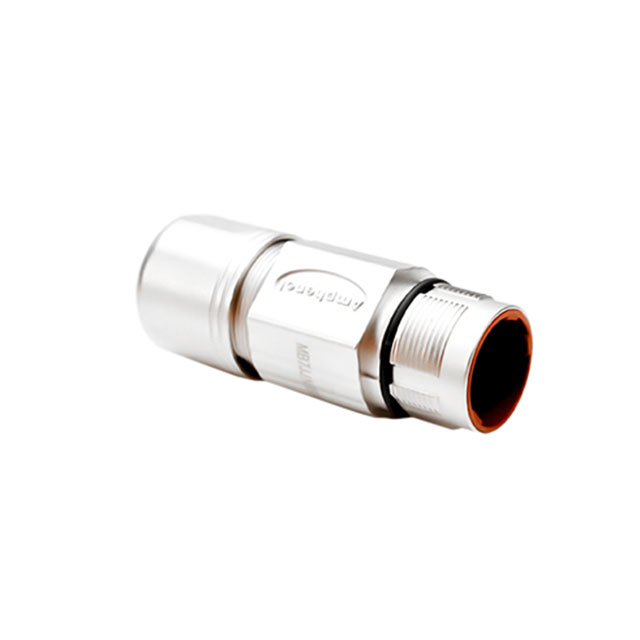

McGill Microwave Systems MB7JJN0800-S3	Dust Tight Waterproof	IP67	Backshell	M23-8	1 mm 2 mm	8	Zinc Die Cast	Keyed	Shielded	Crimp	For Male Pins	Receptacle Housing	Silver	UL94 V-0	Free Hanging (In-Line)	Nickel	Threaded						-20 °C	130 °C				Nylon 6/6 PA66 Polyamide	Contacts Not Included	PE Power	Circular
McGill Microwave Systems MA5RAP1601S-KIT	Dust Tight Waterproof	IP67	Backshell Rotatable	M23-16		16	Zinc Die Cast	N (Normal)				Female Sockets Receptacle			Panel Mount Right Angle	Nickel	Threaded	Metal	Crimp	125 V	DC	Flange	-20 °C	130 °C	Gold	9 A	Silver
McGill Microwave Systems MB7CKN0900-S3-KIT	Dust Tight Waterproof	IP67	Backshell Coupling Nut	M23-9		9	Zinc Die Cast	Keyed	Shielded			Female Sockets Plug			Free Hanging (In-Line)	Nickel	Threaded	Metal	Crimp	250 V	DC		-20 °C	130 °C	Gold		Silver			PE Power		10A 30A
McGill Microwave Systems MB5CKN0600-S3	Dust Tight Waterproof	IP67	Backshell Coupling Nut	M23-6	2 mm	6	Zinc Die Cast	Keyed	Shielded	Crimp	For Female Sockets	Plug Housing	Silver	UL94 V-0	Free Hanging (In-Line)	Nickel	Push-Twist						-20 °C	130 °C				Nylon 6/6 PA66 Polyamide	Contacts Not Included	PE Power	Circular
McGill Microwave Systems MA5CAE1700-S3-KIT	Dust Tight Waterproof	IP67	Backshell Coupling Nut	M23-17		17	Zinc Die Cast	N (Normal)	Shielded			Male Pins Plug			Free Hanging (In-Line)	Nickel	Push-Twist	Metal	Crimp	125 V	DC		-20 °C	130 °C	Gold	9 A	Silver
McGill Microwave Systems MB5JJN0600-S1	Dust Tight Waterproof	IP67	Backshell	M23-6	2 mm	6	Zinc Die Cast	Keyed	Shielded	Crimp	For Male Pins	Receptacle Housing	Silver	UL94 V-0	Free Hanging (In-Line)	Nickel	Push-Twist													PE Power
McGill Microwave Systems MA7CAE1700-S2-KIT	Dust Tight Waterproof	IP67	Backshell Coupling Nut	M23-17		17	Zinc Die Cast	N (Normal)	Shielded			Male Pins Plug			Free Hanging (In-Line)	Nickel	Threaded	Metal	Crimp	125 V	DC		-20 °C	130 °C	Gold	9 A	Silver
