Specification	MAL203135331E3

Applications	General Purpose
Capacitance	330 µF
ESR (Equivalent Series Resistance)	780 mOhm
Impedance	360 mOhms
Lifetime	3000 Hrs
Mounting Type	Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C

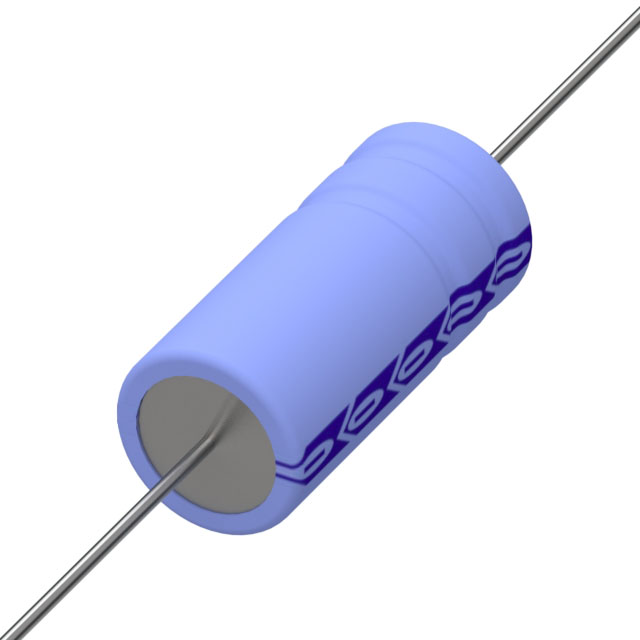

Package / Case	Can, Axial
Polarization	Polar
Ripple Current	410 mA
Size / Dimension Diameter	0.394 in
Size / Dimension Length	0.709 in
Tolerance (Negative)	10 %
Tolerance (Positive)	50 %
Voltage - Rated	16 V

MAL2031 Series

Part	Polarization	Mounting Type	Size / Dimension Length	Size / Dimension Diameter	Operating Temperature (Min)	Operating Temperature (Max)	Ripple Current	ESR (Equivalent Series Resistance)	Capacitance	Applications	Tolerance (Negative)	Tolerance (Positive)	Voltage - Rated	Lifetime	Impedance	Package / Case
Vishay Dale MAL203127101E3	Polar	Through Hole	0.709 in	0.315 in	-40 °C	85 °C	220 mA	1.75 Ohm	100 µF	General Purpose	10 %	50 %	40 V	3000 Hrs	700 mOhm	Axial Can
Vishay Dale MAL203135331E3	Polar	Through Hole	0.709 in	0.394 in	-40 °C	85 °C	410 mA	780 mOhm	330 µF	General Purpose	10 %	50 %	16 V	3000 Hrs	360 mOhms	Axial Can
