2-5-850S

Active

3M (TC)

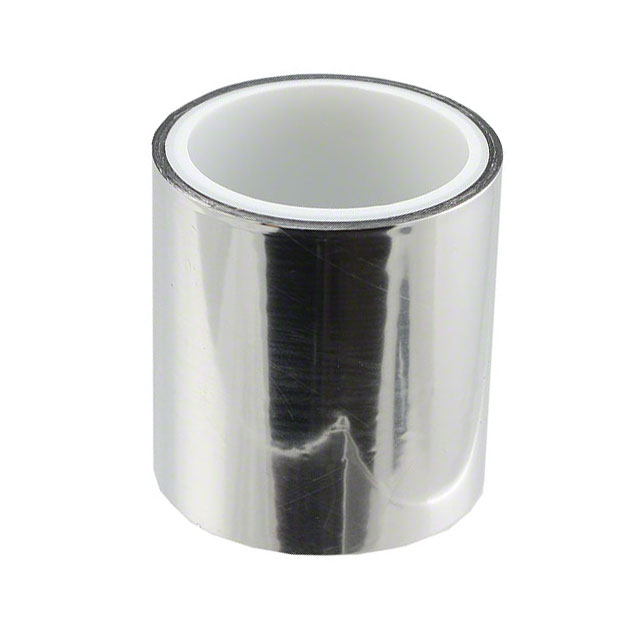

TAPE MASKING SILVER 2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDate Code Decipher Datasheet

2-5-850S

Active

3M (TC)

TAPE MASKING SILVER 2"X5YDS

Deep-Dive with AI

DocumentsDate Code Decipher Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2-5-850S

Adhesive	Acrylic
Backing, Carrier	Polyester Film
Color	Silver
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Masking
Thickness - Adhesive	1 mils
Thickness - Adhesive	0.025 mm
Thickness - Adhesive	0.001 in
Thickness - Backing, Carrier	0.0009 in
Thickness - Backing, Carrier	0.9 mils
Thickness - Backing, Carrier	0.023 mm
Thickness [custom]	0.0019 "
Thickness [custom]	0.048 mm
Thickness [custom]	1.9 mils
Usage	Sealing, Splicing, Shipping, Packaging
Width [y]	2 "
Width [y]	50.8 mm

850S Series

Part	Backing, Carrier	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shelf Life	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Width [x]	Width [x]	Shelf Life Start	Thickness [custom]	Thickness [custom]	Thickness [custom]	Adhesive	Tape Type	Length	Length	Width [y]	Width [y]	Usage	Length	Length [x]	Width	Width	Width	Length [x]
3M (TC) 3M 850S 4" X 9"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm	4 "	101.6 mm	Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	9 "	228.6 mm
3M (TC) 3M 850S 5" X 9"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	9 "	228.6 mm	127 mm	5 in
3M (TC) 850S-12-5	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm	12 in	304.8 mm	Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	15 ft	4.6 m			Packaging Sealing Shipping Splicing	5 yd
3M (TC) 3M 850S 2" X 3"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking		76.2 mm	50.8 mm	2 "			3 in
3M (TC) 3M 850S 0.75" X 4"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking							4 "	0.75 in	19.05 mm	0.75 in	101.6 mm
3M (TC) 3M 850S 0.75" X 5"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking							5 in	0.75 in	19.05 mm	0.75 in	127 mm
3M (TC) 3M 850S 0.75" X 1.5"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	1.5 "	38.1 mm						0.75 in	19.05 mm	0.75 in
3M (TC) 3M 850S 3" X 1.25"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm	3 in	76.2 mm	Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	1.25 in	31.75 mm
3M (TC) 3M 850S 1" X 2"-25	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm	1 in	25.4 mm	Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking
3M (TC) 2-5-850S	Polyester Film	Silver	1 mils	0.025 mm	0.001 in	16 °C 60 °F	27 °C 80 °F	18 Months	0.0009 in	0.9 mils	0.023 mm			Date of Manufacture	0.0019 "	0.048 mm	1.9 mils	Acrylic	Masking	15 ft	4.6 m	50.8 mm	2 "	Packaging Sealing Shipping Splicing	5 yd

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 27.82
