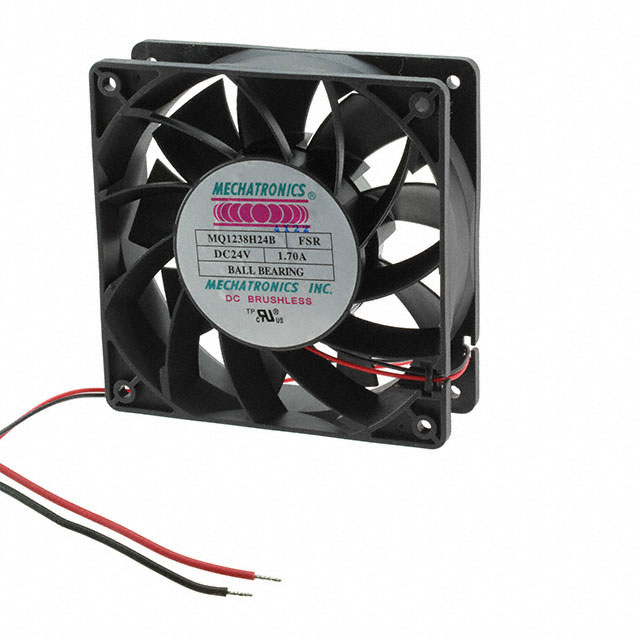

MQ1238H24B-FSR

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 24VDC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 120X38MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	MQ1238H24B-FSR

Air Flow	226 CFM
Air Flow	6.33 m³/min
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.7 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Material - Blade	Polybutylene Terephthalate (PBT)
Noise	65 dB
RPM	5000 RPM
Size / Dimension [x]	120 mm
Size / Dimension [y]	120 mm
Static Pressure	1.35 in H2O
Static Pressure	336.3 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Weight	0.772 lb
Weight	350.17 g
Width [y]	38 mm

Part	Weight	Weight	Termination	Features	RPM	Bearing Type	Width [y]	Fan Type	Noise	Air Flow	Air Flow	Size / Dimension [y]	Size / Dimension [x]	Current Rating (Amps)	Static Pressure	Static Pressure	Approval Agency	Voltage - Rated	Material - Blade
Mechatronics Bearing Group MQ1238H24B-FSR	0.772 lb	350.17 g	2 Wire Leads	Thermal Overload Protector (TOP)	5000 RPM	Ball	38 mm	Tubeaxial	65 dB	226 CFM	6.33 m³/min	120 mm	120 mm	1.7 A	1.35 in H2O	336.3 Pa	CE cUL TUV UL	24 VDC	Polybutylene Terephthalate (PBT)
Mechatronics Bearing Group MQ1238H12B1+6-FSR	0.772 lb	350.17 g	4 Wire Leads	PWM Control Speed Sensor (Tach) Thermal Overload Protector (TOP)	5000 RPM	Ball	38 mm	Tubeaxial	65 dB	226 CFM	6.33 m³/min	120 mm	120 mm	3.6 A	1.35 in H2O	336.3 Pa	CE cUL TUV UL	12 VDC	Polybutylene Terephthalate (PBT)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.44

General part information

Fan Tubeaxial 24VDC Square - 120mm L x 120mm H Ball 226.0 CFM (6.33m³/min) 2 Wire Leads
