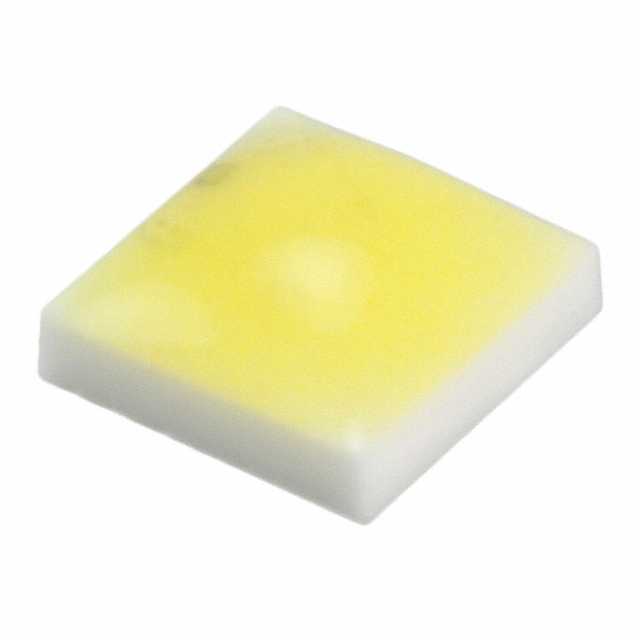

XHGAWT-00-0000-00000HWF8

Active

Cree LED

LED XLAMP WARM WHT 2850K 3030

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXH Family Binning & Labeling ~Datasheet

XHGAWT-00-0000-00000HWF8

Active

Cree LED

LED XLAMP WARM WHT 2850K 3030

Deep-Dive with AI

DocumentsXH Family Binning & Labeling ~Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XHGAWT-00-0000-00000HWF8

CCT (K)	2850 K
Color	White, Warm
CRI (Color Rendering Index)	80
Current - Max [Max]	350 mA
Current - Test	65 mA
Flux @ 25°C, Current - Test	25 lm
Flux @ 25°C, Current - Test [Max]	27 lm
Flux @ 25°C, Current - Test [Min]	24 lm
Height - Seated (Max) [Max]	1.83 mm
Height - Seated (Max) [Max]	0.072 "
Lumens/Watt @ Current - Test	133 lm/W
Mounting Type	Surface Mount
Package / Case	1212
Package / Case	3030 Metric
Size / Dimension [x]	0.118 in
Size / Dimension [x]	3 mm
Size / Dimension [y]	3 mm
Size / Dimension [y]	0.118 in
Supplier Device Package	3030
Thermal Resistance of Package [custom]	20 °C/W
Viewing Angle	130 °
Voltage - Forward (Vf) (Typ)	2.9 V

XHGAWT Series

Part	Viewing Angle	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Mounting Type	Supplier Device Package	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Lumens/Watt @ Current - Test	Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Min]	Color	Package / Case	Package / Case	Thermal Resistance of Package [custom]	CRI (Color Rendering Index)	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	CCT (K)	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Cree LED XHGAWT-00-0000-00000PVE7	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	111 lm/W	65 mA	24 lm	21 lm	18 lm	Warm White	1212	3030 Metric	20 °C/W	85	350 mA	2.9 V
Cree LED XHGAWT-00-0000-00000LX51	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Cool White	1212	3030 Metric	20 °C/W		350 mA	2.9 V	6000 K
Cree LED XHGAWT-00-0000-00000LX50	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Cool White	1212	3030 Metric	20 °C/W		350 mA	2.9 V	6000 K
Cree LED XHGAWT-00-0000-00000UVF8	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	111 lm/W	65 mA	24 lm	21 lm	18 lm	Warm White	1212	3030 Metric	20 °C/W	90	350 mA	2.9 V	2850 K
Cree LED XHGAWT-00-0000-00000HWF8	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	133 lm/W	65 mA		25 lm		Warm White	1212	3030 Metric	20 °C/W	80	350 mA	2.9 V	2850 K	27 lm	24 lm
Cree LED XHGAWT-00-0000-00000BXE2	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Cool White	1212	3030 Metric	20 °C/W	70	350 mA	2.9 V	5700 K
Cree LED XHGAWT-00-0000-00000HXE4	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Neutral White	1212	3030 Metric	20 °C/W	80	350 mA	2.9 V
Cree LED XHGAWT-00-0000-00000LXE4	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Neutral White	1212	3030 Metric	20 °C/W		350 mA	2.9 V
Cree LED XHGAWT-00-0000-00000BXE5	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Neutral White	1212	3030 Metric	20 °C/W	70	350 mA	2.9 V	4000 K
Cree LED XHGAWT-00-0000-00000HXF7	130 °	0.118 in	3 mm	3 mm	0.118 in	Surface Mount	3030	1.83 mm	0.072 "	154 lm/W	65 mA				Warm White	1212	3030 Metric	20 °C/W	80	350 mA	2.9 V	3200 K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.27
		25000	$ 0.25

Description

General part information

XHGAWT Series

LED Lighting XLamp® XH-G White, Warm 2850K 2.9V 65mA 130° 1212 (3030 Metric)

Documents

Technical documentation and resources

XH Family Binning & Labeling ~

Datasheet
