796700-2

Obsolete

TE Connectivity AMP Connectors

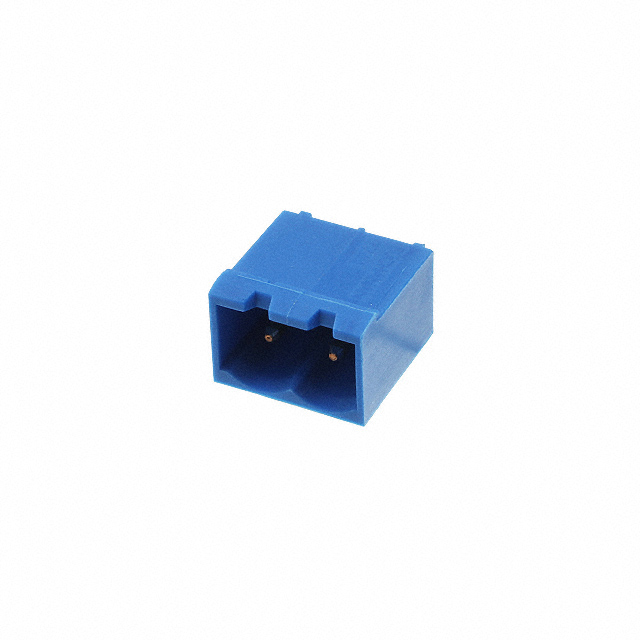

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796700-2

Obsolete

TE Connectivity AMP Connectors

TERM BLOCK HDR 2POS 90DEG 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796700-2	796700 Series

Color	Blue	Blue
Contact Material	Copper Alloy	Copper Alloy
Contact Mating Finish	Tin	Tin
Contact Tail Length	3.5 mm	3.5 mm
Contact Tail Length	0.138 in	0.138 in
Header Orientation	90°, Right Angle	90°, Right Angle
Insulation Height	8.36 mm	8.36 mm
Insulation Height	0.329 in	0.329 in
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Levels	1	1
Number of Positions	2	2 - 10
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	2	2 - 10
Termination Style	Solder	Solder
Type	Header, Male Pins, Shrouded (4 Side)	Header, Male Pins, Shrouded (4 Side)
Voltage - UL	300 V	300 V

796700 Series

TERM BLOCK HDR 3POS 5MM

Part	Type	Contact Mating Finish	Voltage - UL	Color	Positions Per Level	Contact Tail Length	Contact Tail Length	Material Flammability Rating	Insulation Height	Insulation Height	Mounting Type	Termination Style	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Header Orientation	Number of Levels	Number of Positions
TE Connectivity AMP Connectors 796700-3	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	3	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1
TE Connectivity AMP Connectors 796700-2	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	2	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1	2
TE Connectivity AMP Connectors 796700-7	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	7	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1	7
TE Connectivity AMP Connectors 1-796700-0	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	10	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1	10
TE Connectivity AMP Connectors 796700-8	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	8	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1	8
TE Connectivity AMP Connectors 796700-5	Header, Male Pins, Shrouded (4 Side)	Tin	300 V	Blue	5	3.5 mm	0.138 in	UL94 V-0	8.36 mm	0.329 in	Through Hole	Solder	5 mm	0.197 in	-40 °C	110 °C	Copper Alloy	90°, Right Angle	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

796700 Series

2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
