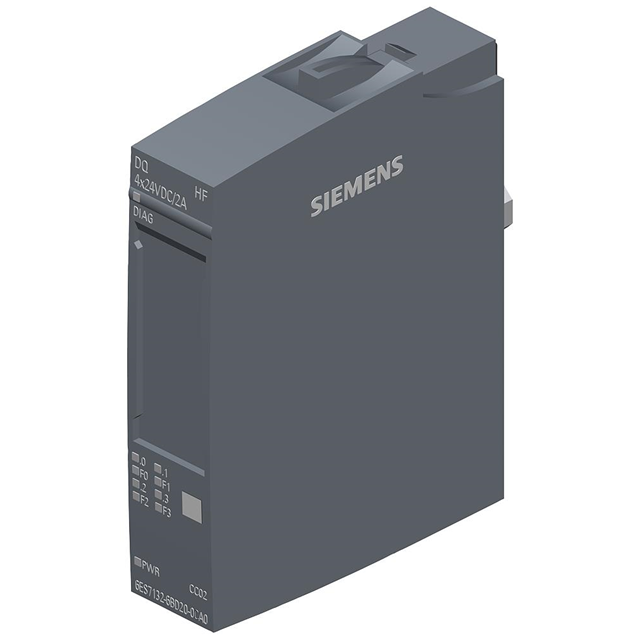

6ES71326BD200CA0

Active

Siemens

ET200SP DIGITAL OUT DQ 4X24VDC/2

Search across all available documentation for this part.

Active

Siemens

ET200SP DIGITAL OUT DQ 4X24VDC/2

Technical Specifications

Parameters and characteristics for this part

Specification	6ES71326BD200CA0

For Use With/Related Products	SIMATIC ET 200SP
Mounting Type	DIN Rail
Number of Outputs and Type	4
Number of Outputs and Type	Digital
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-30 ░C
Termination Style	Screw Terminal
Type	Output Module
Voltage - Supply [Max]	28.8 VDC
Voltage - Supply [Min]	19.2 V

Part	Number of Outputs and Type	Number of Outputs and Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Max]	Voltage - Supply [Min]	For Use With/Related Products	Mounting Type	Type	Voltage - Supply	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]
Siemens 6ES71326BD200CA0	4	Digital	Screw Terminal	-30 ░C	60 °C	28.8 VDC	19.2 V	SIMATIC ET 200SP	DIN Rail	Output Module
Siemens 6ES71326BD202BA0	4	Digital	Screw Terminal	-30 ░C	60 °C	28.8 VDC	19.2 V	SIMATIC ET 200SP	DIN Rail	Output Module
Siemens 6ES71326HC500BU0				-30 ░C	60 °C			SIMATIC ET 200SP	DIN Rail	Output Module	24 VDC	Relay	3
Siemens 6ES71326BH010BA0			Requires Basic Unit	-30 ░C	60 °C			SIMATIC ET 200SP	Requires Basic Unit	Output Module	24 VDC		16	Digital
