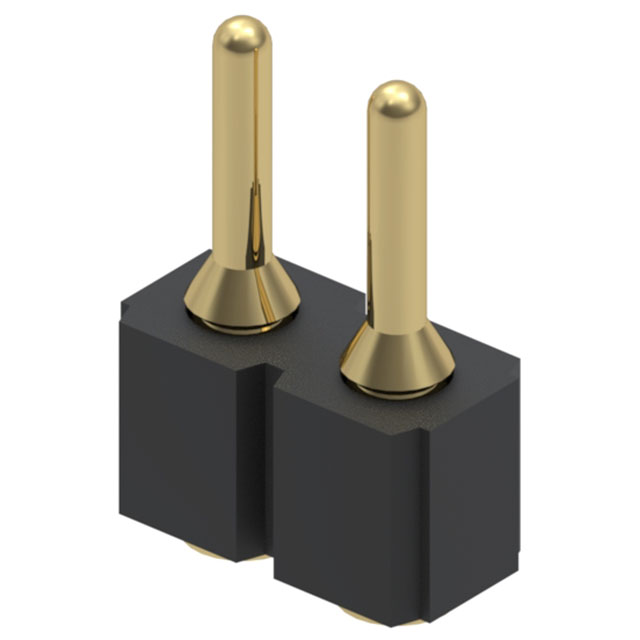

349-10-102-00-560000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD 2POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

349-10-102-00-560000

Active

Mill-Max Manufacturing Corp.

CONN HEADER SMD 2POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	349-10-102-00-560000

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	0.136 in
Contact Length - Mating	3.45 mm
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT)
Mounting Type	Surface Mount
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder

349-10 Series

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Fastening Type	Contact Finish - Post	Connector Type	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Termination	Contact Finish - Mating	Insulation Color	Number of Rows	Shrouding	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Type	Number of Positions
Mill-Max Manufacturing Corp. 349-10-125-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin
Mill-Max Manufacturing Corp. 349-10-141-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	41
Mill-Max Manufacturing Corp. 349-10-126-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	26
Mill-Max Manufacturing Corp. 349-10-128-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	28
Mill-Max Manufacturing Corp. 349-10-102-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	2
Mill-Max Manufacturing Corp. 349-10-159-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	59
Mill-Max Manufacturing Corp. 349-10-127-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	27
Mill-Max Manufacturing Corp. 349-10-107-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	7
Mill-Max Manufacturing Corp. 349-10-146-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	46
Mill-Max Manufacturing Corp. 349-10-129-00-560000	10 çin	0.25 çm	Polycyclohexylenedimethylene Terephthalate (PCT)	Push-Pull	Gold	Header	Surface Mount	0.136 in	3.45 mm	Circular	Solder	Gold	Black	1	Unshrouded	0.1 in	2.54 mm	10 çin	0.25 çm	All	Male Pin	29

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.24
		10	$ 0.94
		100	$ 0.73
		500	$ 0.61
		1000	$ 0.57
		5000	$ 0.48
		10000	$ 0.45

Description

General part information

349-10 Series

Connector Header Surface Mount 2 position 0.100" (2.54mm)

Documents

Technical documentation and resources

No documents available
