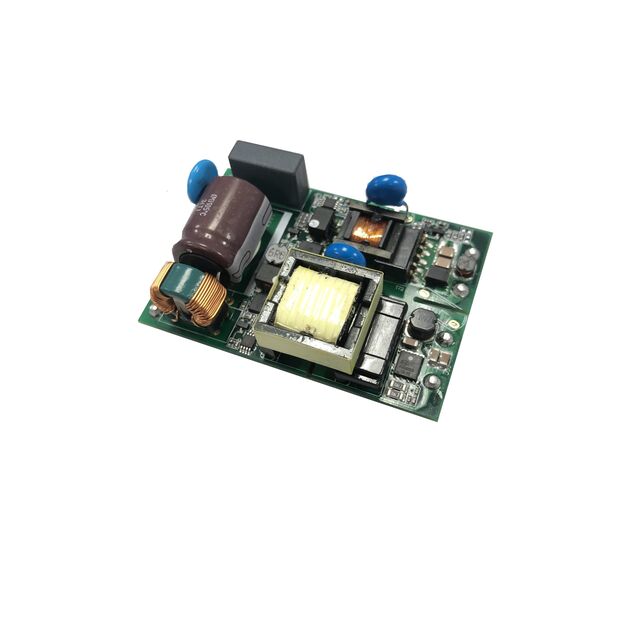

AM10OW-2415SNZ

Active

aimtec

DC DC CONVERTER 15V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM10OW-2415SNZ

Active

aimtec

DC DC CONVERTER 15V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 21.14
		50	$ 20.29
		100	$ 19.48
		200	$ 18.51
		400	$ 17.40
		800	$ 16.88
		1600	$ 15.88
		3200	$ 15.40

Description

General part information

AM10O Series

Isolated Module DC DC Converter 1 Output 15V 667mA 9V - 36V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	AM10OW-2415SNZ	AM10O Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max) [Max]	667 mA	2 - 833 mA
Efficiency	88 %	84 - 97 %
Features	Remote On/Off	Remote On/Off
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	-	6-DIP Module
Power (Watts)	10 W	10 W
Size / Dimension	-	7 mm
Size / Dimension	-	22 mm
Size / Dimension [x]	1.54 in	1.54 - 1.63 in
Size / Dimension [x]	39.2 mm	39.2 - 41.4 mm
Size / Dimension [y]	0.82 "	0.82 - 0.87 "
Size / Dimension [y]	20.8 mm	20.8 mm
Size / Dimension [z]	6.1 mm	6.1 mm
Size / Dimension [z]	0.24 "	0.24 - 0.28 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	9 V	9 V
Voltage - Isolation	1.5 kV	1.5 kV
Voltage - Output 1	15 V	5 - 15 V

AM10O Series

DC DC CONVERTER 12V 10W

Part	Features	Voltage - Input (Max) [Max]	Type	Power (Watts)	Mounting Type	Applications	Voltage - Output 1	Voltage - Input (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Efficiency	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Size / Dimension [z]	Size / Dimension [y]
aimtec AM10OW-2412SNZ-LM	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	12 V	9 V	85 °C	-40 °C	1	97 %	833 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2415SNZ-M	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	15 V	9 V	85 °C	-40 °C	1	88 %	667 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm	6-DIP Module
aimtec AM10OW-2412SNZ-L	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	12 V	9 V	85 °C	-40 °C	1	97 %	833 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2405SNZ-M	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	5 V	9 V	85 °C	-40 °C	1	84 %	2 A	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2405SNZ-LM	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	5 V	9 V	85 °C	-40 °C	1	84 %	2 A	1.5 kV	1.63 "		0.87 in	0.28 "	41.4 mm			7 mm	22 mm
aimtec AM10OW-2405SNZ-L	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	5 V	9 V	85 °C	-40 °C	1	84 %	2 A	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2405SNZ	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	5 V	9 V	85 °C	-40 °C	1	84 %	2 A	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2415SNZ	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	15 V	9 V	85 °C	-40 °C	1	88 %	667 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2415SNZ-LM	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	15 V	9 V	85 °C	-40 °C	1	88 %	667 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
aimtec AM10OW-2415SNZ-L	Remote On/Off	36 V	Isolated Module	10 W	Through Hole	ITE (Commercial)	15 V	9 V	85 °C	-40 °C	1	88 %	667 mA	1.5 kV	1.54 in	6.1 mm	0.82 "	0.24 "	39.2 mm	20.8 mm
