EDAC Inc.

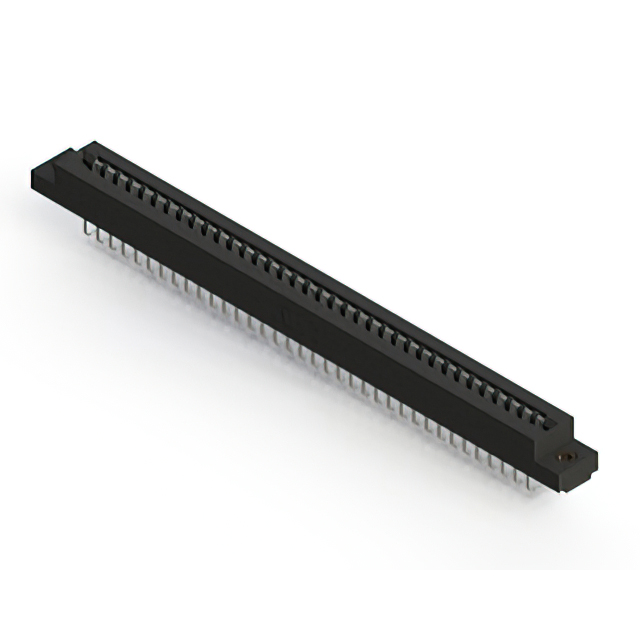

CONN EDGE DUAL FMALE 72POS 0.156

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

857-072-458-207

Active

EDAC Inc.

CONN EDGE DUAL FMALE 72POS 0.156

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	857-072-458-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Semi Bellows
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyphenylene Sulfide (PPS)
Mounting Type	Through Hole, Right Angle
Number of Positions	72
Number of Positions/Bay/Row [custom]	36
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Solder
Termination Rows	2

857-072 Series

...

Part	Material - Insulation	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Termination Rows	Contact Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type	Card Type	Pitch [x]	Pitch [x]	Contact Finish	Contact Material	Color	Read Out	Number of Positions/Bay/Row [custom]	Gender	Termination	Number of Rows	Features	Contact Finish Thickness	Contact Finish Thickness	Flange Feature	Flange Feature
EDAC Inc. 857-072-459-202	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Through Hole Right Angle	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Single	36	Female	Solder	2
EDAC Inc. 857-072-456-204	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	3.96 mm	0.156 in	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Dual	36	Female	Solder	2	Card Extender
EDAC Inc. 857-072-556-202	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	Gold	Copper Alloy	Black	Dual	36	Female	Solder	2	Card Extender	10 Áin	0.25 Ám
EDAC Inc. 857-072-459-212	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Side Mount Opening Unthreaded	Through Hole Right Angle	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Single	36	Female	Solder	2				3.25 mm	0.128 in
EDAC Inc. 857-072-458-203	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in	2.95 mm	0.116 in	Floating Bobbin Flush Mount	Through Hole Right Angle	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Single	36	Female	Solder	2
EDAC Inc. 857-072-459-201	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in				Through Hole Right Angle	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Single	36	Female	Solder	2
EDAC Inc. 857-072-422-207	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Flush Mount M3 Threaded Insert Top Opening	Through Hole	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Dual	36	Female	Solder	2
EDAC Inc. 857-072-456-212	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Side Mount Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Dual	36	Female	Solder	2	Card Extender			3.25 mm	0.128 in
EDAC Inc. 857-072-555-212	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Side Mount Opening Unthreaded	Board Edge Straddle Mount	Non Specified - Dual Edge	0.156 in	3.96 mm	Gold	Copper Alloy	Black	Dual	36	Female	Solder	2	Card Extender	10 Áin	0.25 Ám	3.25 mm	0.128 in
EDAC Inc. 857-072-458-207	Polyphenylene Sulfide (PPS)	125 °C	-40 °C	72	2	Semi Bellows	1.37 mm	0.054 "	1.78 mm	0.07 in			Flush Mount M3 Threaded Insert Top Opening	Through Hole Right Angle	Non Specified - Dual Edge	0.156 in	3.96 mm	Tin	Copper Alloy	Black	Single	36	Female	Solder	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 131.80

Description

General part information

857-072 Series

72 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
