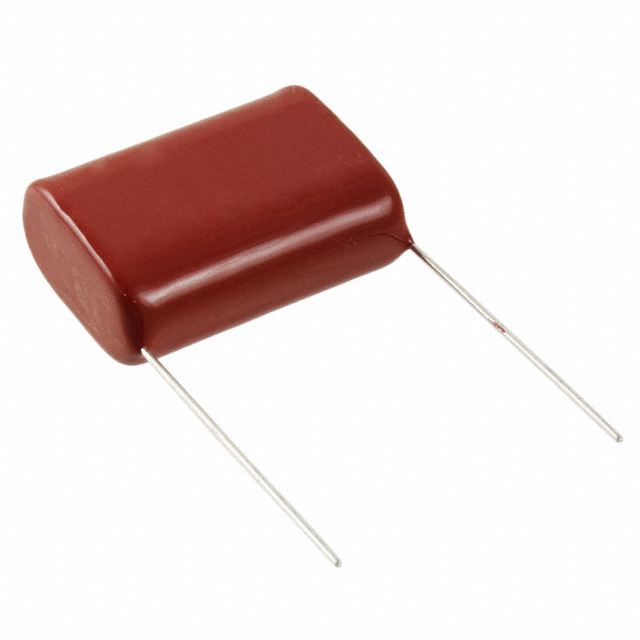

CAP FILM 10UF 250VAC RADIAL

Search across all available documentation for this part.

Obsolete

Nichicon

CAP FILM 10UF 250VAC RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EXH2E106HRPT	EXH2E Series

Applications	Motor Run	Motor Run
Capacitance	10 µF	6 - 12 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Height - Seated (Max)	-	25.5 - 31.5 mm
Height - Seated (Max)	-	1.004 - 1.24 in
Height - Seated (Max) [Max] [z]	30.5 mm	27.5 - 30.5 mm
Height - Seated (Max) [Max] [z]	1.201 in	1.083 - 1.201 in
Lead Spacing	32.5 mm	32.5 mm
Lead Spacing	1.28 in	1.28 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Package / Case	Radial	Radial
Size / Dimension [x]	1.417 in	1.417 in
Size / Dimension [x]	36 mm	36 mm
Size / Dimension [y]	17.5 mm	14 - 18.5 mm
Size / Dimension [y]	0.689 in	0.551 - 0.728 in
Termination	PC Pins	PC Pins
Tolerance [Max]	10 %	10 %
Tolerance [Min]	-5 %	-5 %
Voltage Rating - AC	250 V	250 V

CAP FILM 8UF -5% +10% 250VAC RAD

Part	Termination	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Package / Case	Tolerance [Min]	Tolerance [Max]	Capacitance	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon EXH2E805HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.61 in	15.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	8 µF	250 V
Nichicon EXH2E905HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.65 in	16.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	9 µF	250 V	1.161 in	29.5 mm
Nichicon EXH2E126HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.728 in	18.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	12 µF	250 V			31.5 mm	1.24 in
Nichicon EXH2E705HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.571 in	14.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	7 µF	250 V	1.083 in	27.5 mm
Nichicon EXH2E605HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.551 in	14 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	6 µF	250 V			25.5 mm	1.004 in
Nichicon EXH2E106HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.689 in	17.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	10 µF	250 V	1.201 in	30.5 mm
