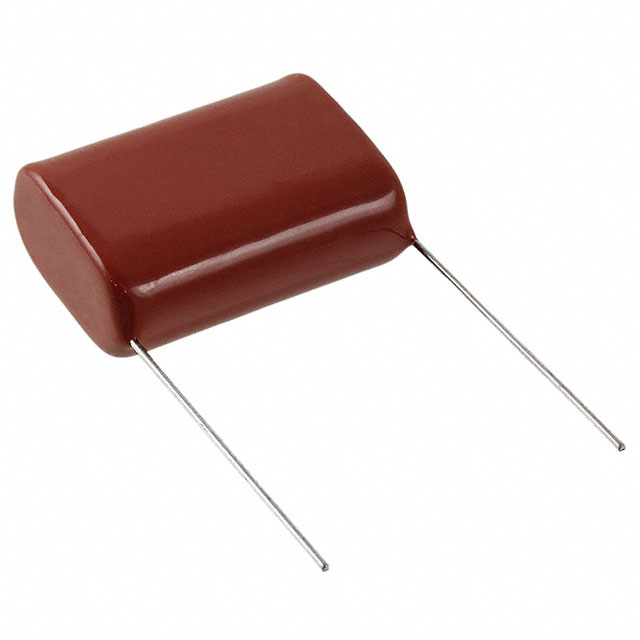

EXH2E705HRPT

Obsolete

Nichicon

CAP FILM 7UF -5% +10% 250VAC RAD

Search across all available documentation for this part.

Obsolete

Nichicon

CAP FILM 7UF -5% +10% 250VAC RAD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

7 µF Film Capacitor 250V Polypropylene (PP), Metallized Radial

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	EXH2E705HRPT	EXH2E Series

Applications	Motor Run	Motor Run
Capacitance	7 µF	6 - 12 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
Height - Seated (Max)	-	25.5 - 31.5 mm
Height - Seated (Max)	-	1.004 - 1.24 in
Height - Seated (Max) [Max] [z]	1.083 in	1.083 - 1.201 in
Height - Seated (Max) [Max] [z]	27.5 mm	27.5 - 30.5 mm
Lead Spacing	32.5 mm	32.5 mm
Lead Spacing	1.28 in	1.28 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Package / Case	Radial	Radial
Size / Dimension [x]	1.417 in	1.417 in
Size / Dimension [x]	36 mm	36 mm
Size / Dimension [y]	14.5 mm	14 - 18.5 mm
Size / Dimension [y]	0.571 in	0.551 - 0.728 in
Termination	PC Pins	PC Pins
Tolerance [Max]	10 %	10 %
Tolerance [Min]	-5 %	-5 %
Voltage Rating - AC	250 V	250 V

CAP FILM 8UF -5% +10% 250VAC RAD

Part	Termination	Dielectric Material	Lead Spacing	Lead Spacing	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Applications	Package / Case	Tolerance [Min]	Tolerance [Max]	Capacitance	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Nichicon EXH2E805HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.61 in	15.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	8 µF	250 V
Nichicon EXH2E905HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.65 in	16.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	9 µF	250 V	1.161 in	29.5 mm
Nichicon EXH2E126HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.728 in	18.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	12 µF	250 V			31.5 mm	1.24 in
Nichicon EXH2E705HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.571 in	14.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	7 µF	250 V	1.083 in	27.5 mm
Nichicon EXH2E605HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.551 in	14 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	6 µF	250 V			25.5 mm	1.004 in
Nichicon EXH2E106HRPT	PC Pins	Metallized, Polypropylene (PP)	32.5 mm	1.28 in	-25 °C	85 °C	Through Hole	0.689 in	17.5 mm	1.417 in	36 mm	Motor Run	Radial	-5 %	10 %	10 µF	250 V	1.201 in	30.5 mm
