R141154000

Active

Radiall USA, Inc.

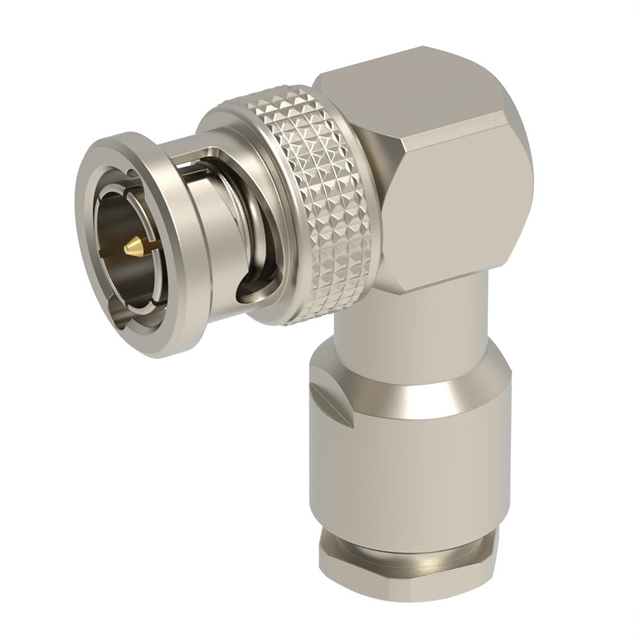

BNC M RA 2.6/50+75 C100

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC M RA 2.6/50+75 C100

Technical Specifications

Parameters and characteristics for this part

Specification	R141154000

Body Finish	Nickel
Body Material	Brass
Cable Group	179, RG-174, 316
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	4 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Spacer, 1 Connector, 1 Braid Clamp, 1 Clamp Nut, 1 Contact, 1 Gasket
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Clamp
Voltage Rating	500 V

Part	Mating Cycles	Housing Color	Operating Temperature [Min]	Operating Temperature [Max]	Connector Style	Includes	Number of Ports	Impedance	Frequency - Max [Max]	Fastening Type	Connector Type	Body Finish	Contact Termination	Cable Group	Center Contact Plating	Dielectric Material	Shield Termination	Voltage Rating	Mounting Type	Body Material	Center Contact Material
Radiall USA, Inc. R141154000	500	Silver	-65 ░C	165 °C	BNC	1 Braid Clamp 1 Clamp Nut 1 Connector 1 Contact 1 Gasket 1 Spacer	1	50 Ohms	4 GHz	Bayonet Lock	Male Pin Plug	Nickel	Crimp	179 316 RG-174	Gold	Polytetrafluoroethylene (PTFE)	Clamp	500 V	Free Hanging (In-Line) Right Angle	Brass	Beryllium Copper Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
