0034.6978

Active

SCHURTER Inc.

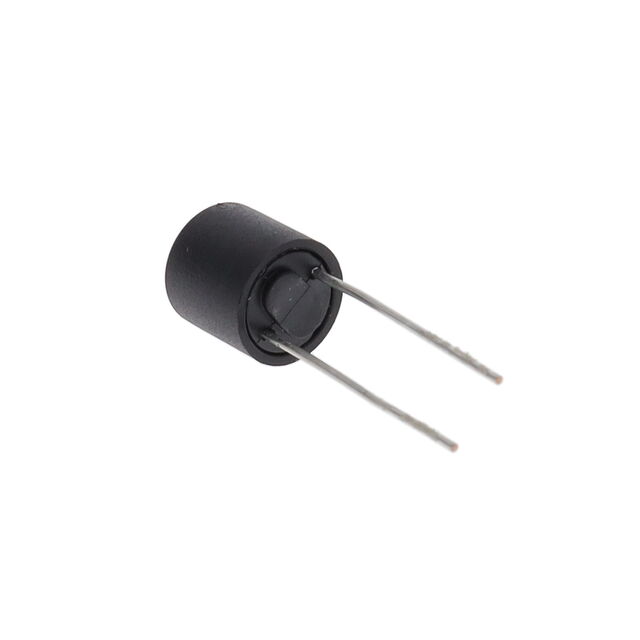

"MXT 250, 2 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"MXT 250, 2 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Technical Specifications

Parameters and characteristics for this part

Specification	0034.6978

Approval Agency	cURus, VDE, PSE/JET, KC, CCC
Breaking Capacity @ Rated Voltage	100 A
Current Rating (Amps)	2 A
Fuse Type	Board Mount
Melting I˛t	16
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Vertical, Radial, Can
Response Time	Slow Blow
Size / Dimension [diameter]	0.335 "
Size / Dimension [diameter]	8.5 mm
Size / Dimension [z]	0.335 "
Size / Dimension [z]	8.5 mm
Voltage Rating - AC	250 V

"MXT 250, 2 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/

Part	Response Time	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Breaking Capacity @ Rated Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Fuse Type	Melting I˛t	Package / Case	Current Rating (Amps)	Approval Agency	Voltage Rating - AC
SCHURTER Inc. 0034.6978	Slow Blow	0.335 "	8.5 mm	0.335 "	8.5 mm	100 A	85 °C	-40 °C	Through Hole	Board Mount	16	Can, Radial, Vertical	2 A	CCC, cURus, KC, PSE/JET, VDE	250 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

"MXT 250, 2 A, 250 VAC, TIME-LAG T, FUSE, SUBMINIATURE FUSE\/
