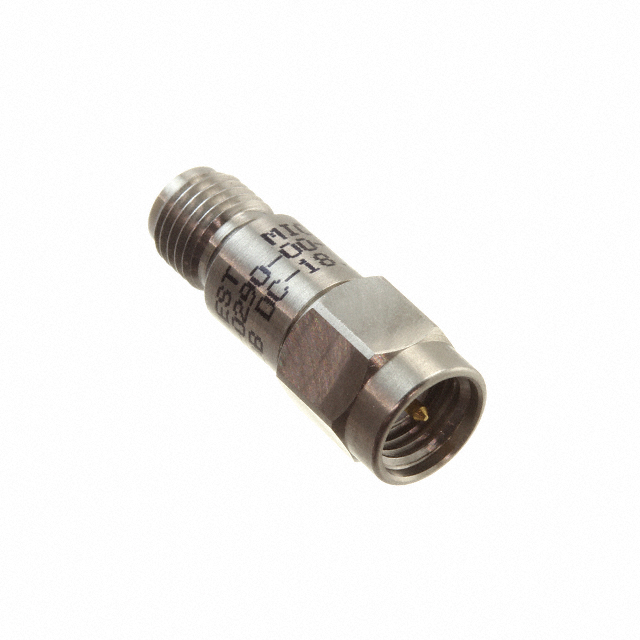

ATT-0290-00-SMA-02

Active

Cinch Connectivity Solutions Midwest Microwave

RF ATTENUATOR SMA MODULE

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions Midwest Microwave

RF ATTENUATOR SMA MODULE

Technical Specifications

Parameters and characteristics for this part

Part	Attenuation Value [custom]	Power (Watts)	Frequency Range [Max]	Frequency Range [Min]	Package / Case	Attenuation Value	Impedance	Attenuation Value [Max] [custom]	Attenuation Value [Min] [custom]
Cinch Connectivity Solutions Midwest Microwave ATT-0263-03-SMA-02	3 dB	2 W	18 GHz	0 Hz	SMA In-Line Module
Cinch Connectivity Solutions Midwest Microwave ATT-0294-20-SMA-02		2 W	2 GHz	0 Hz	SMA In-Line Module	20 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0219-20-NNN-02		2 W	18 GHz	0 Hz	N-Type In-Line Module	20 dB	50 Ohms
Cinch Connectivity Solutions Midwest Microwave ATT-0290-10-HEX-02		2 W	18 GHz	0 Hz	HEX In-Line Module	10 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0290-00-SMA-02		2 W	18 GHz	0 Hz	SMA In-Line Module
Cinch Connectivity Solutions Midwest Microwave ATT-0205-09-SMA-02		2 W	12.4 GHz	0 Hz	SMA In-Line Module	9 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0298-10-HEX-02		2 W			HEX In-Line Module	10 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0290-08-HEX-02		2 W	18 GHz	0 Hz	HEX In-Line Module	8 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0290-76-SMA-02		2 W	18 GHz	0 Hz	SMA In-Line Module			50 dB	0 dB
Cinch Connectivity Solutions Midwest Microwave ATT-0298-16-SMA-02	16 dB	2 W			SMA In-Line Module

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 177.37

General part information

RF Attenuators 0 Hz ~ 18 GHz 2W SMA In-Line Module

Technical documentation and resources

No documents available
