NTCS0805E3103GLT
ActiveVishay Dale
NTC THERMISTORS NTC SMD 0805 NISN 10K 2% LOW B T&R E3
NTCS0805E3103GLT
ActiveVishay Dale
NTC THERMISTORS NTC SMD 0805 NISN 10K 2% LOW B T&R E3
Description
General part information
NTCS0805E3 Series

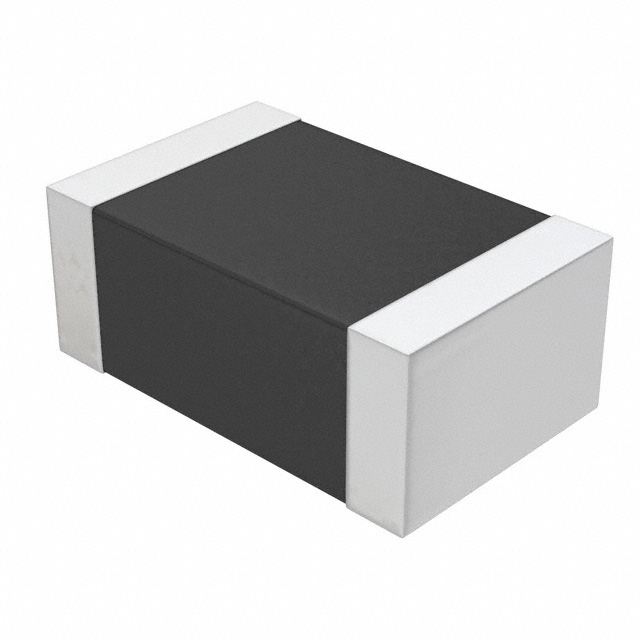

NTC Thermistor 10k 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | NTCS0805E3103GLT |
|---|---|
| B Value (25/85) | 3430 K |
| B Value Tolerance | 3 % |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 150 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 0805 (2012 Metric) |
| Power - Max | 210 mW |
| Qualification | AEC-Q200 |
| Resistance (Ohms) | 10 kOhm |
| Resistance Tolerance (%) | 2 % |
