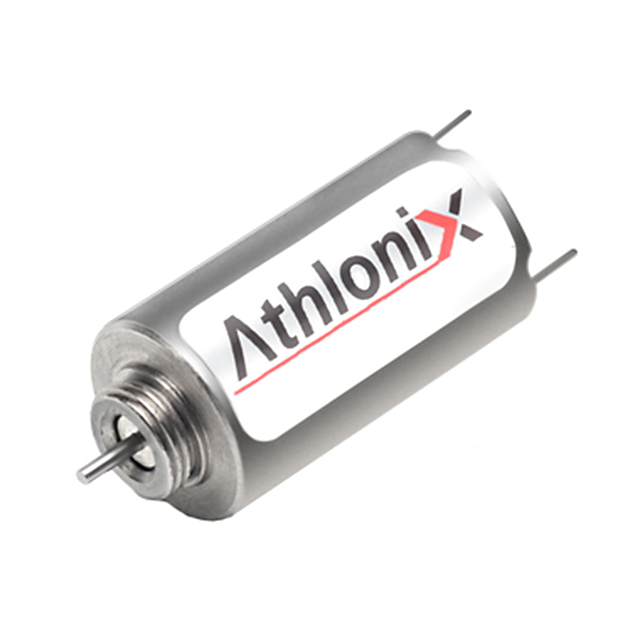

10NS61-107C.5
ActivePortescap
STANDARD MOTOR 10000 RPM 3V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
10NS61-107C.5
ActivePortescap
STANDARD MOTOR 10000 RPM 3V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 10NS61-107C.5 |
|---|---|
| Diameter - Shaft [diameter] | 0.8 mm |
| Diameter - Shaft [diameter] | 0.031 in |
| Function | Standard |
| Length - Shaft and Bearing [x] | 0.22 in |
| Length - Shaft and Bearing [x] | 5.6 mm |
| Motor Type | Brushed |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 0.7 W |
| RPM | 10000 RPM |
| Size / Dimension [diameter] | 10 mm |
| Size / Dimension [diameter] | 0.394 in |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 0.9 mNm |
| Torque - Rated (oz-in / mNm) | 0.127 oz-in |
| Type | DC Motor |
| Voltage - Rated | 3 VDC |
| Weight | 15.88 g |
| Weight | 0.035 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 67.59 | |
| 5 | $ 62.12 | |||
| 10 | $ 59.90 | |||
| 25 | $ 57.08 | |||
| 50 | $ 55.05 | |||
| 100 | $ 53.08 | |||
Description
General part information
10NS61 Series
Brushed DC Motor Standard 10000 RPM 0.7W 3VDC
