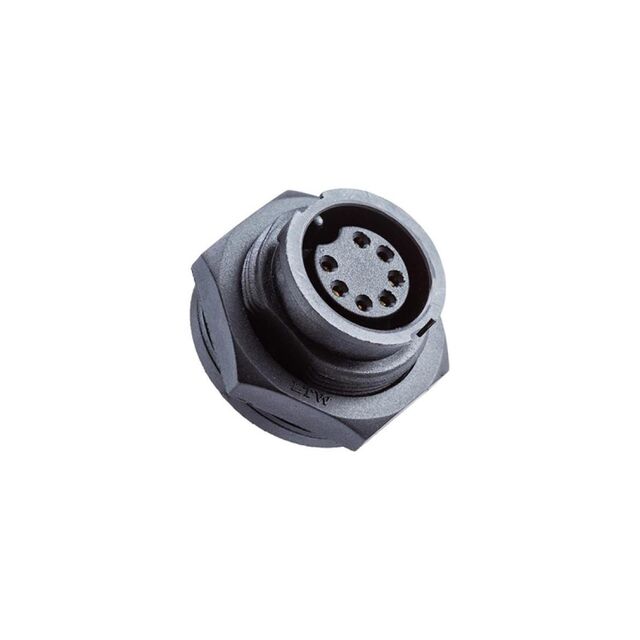

CD-08PMFP-LC7001

Active

Amphenol LTW

CERES, MIDDLE SIZE, 5A, 08 PINS,

Search across all available documentation for this part.

Active

Amphenol LTW

CERES, MIDDLE SIZE, 5A, 08 PINS,

Technical Specifications

Parameters and characteristics for this part

Specification	CD-08PMFP-LC7001

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	8
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Nylon, Glass Filled, Polyamide (PA)
Shell Size - Insert	C
Shielding	Unshielded
Termination	Solder
Voltage Rating	250 VDC

Part	Connector Type	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Shell Material	Mounting Type	Fastening Type	Contact Finish - Mating	Mounting Feature	Voltage Rating	Ingress Protection	Shielding	Termination	Current Rating (Amps)	Number of Positions	Color	Primary Material	Orientation
Amphenol LTW CD-08PMFP-LC7001	Receptacle Female Sockets	Copper Alloy	-40 °C	105 ░C	C	Polyamide (PA) Nylon Glass Filled	Glass Filled Nylon Polyamide (PA)	Panel Mount Through Hole	Bayonet Lock	Gold	Bulkhead - Front Side Nut	250 VDC	IP67 - Dust Tight Waterproof	Unshielded	Solder	5 A	8	Black	Plastic	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
