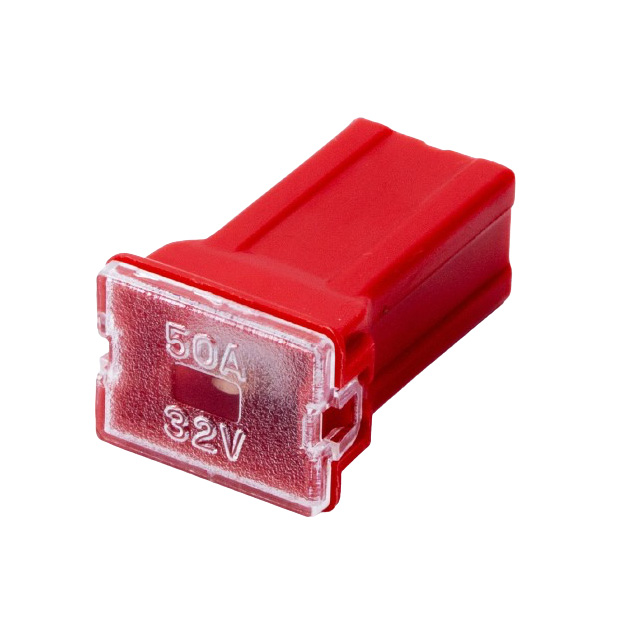

TFLS-50A

Active

OptiFuse

FUSE AUTO 50A 32VAC 32VDC

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 50A 32VAC 32VDC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TFLS-50A	TFLS Series

Approval Agency	ISO, SAE	ISO, SAE
Breaking Capacity @ Rated Voltage	1 kA	1 kA
Color	Red	Pink, Black, Red, Brown, Yellow
Current Rating (Amps)	50 A	30 - 80 A
Fuse Type	Automotive	Automotive
Mounting Type	Requires Holder	Requires Holder
Package / Case	Auto Link	Auto Link
Response Time	Fast Blow	Fast Blow
Size / Dimension [x]	0.638 in	0.638 in
Size / Dimension [x]	16.2 mm	16.2 mm
Size / Dimension [y]	0.492 "	0.492 "
Size / Dimension [y]	12.5 mm	12.5 mm
Size / Dimension [z]	1.059 in	1.059 in
Size / Dimension [z]	26.9 mm	26.9 mm
Voltage Rating - AC	32 V	32 V
Voltage Rating - DC	32 V	32 V

FUSE AUTO 30A 32VAC 32VDC

Part	Approval Agency	Voltage Rating - DC	Color	Package / Case	Fuse Type	Breaking Capacity @ Rated Voltage	Response Time	Mounting Type	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Current Rating (Amps)
OptiFuse TFLS-30A	ISO, SAE	32 V	Pink	Auto Link	Automotive	1 kA	Fast Blow	Requires Holder	32 V	0.492 "	12.5 mm	1.059 in	26.9 mm	0.638 in	16.2 mm	30 A
OptiFuse TFLS-80A	ISO, SAE	32 V	Black	Auto Link	Automotive	1 kA	Fast Blow	Requires Holder	32 V	0.492 "	12.5 mm	1.059 in	26.9 mm	0.638 in	16.2 mm	80 A
OptiFuse TFLS-50A	ISO, SAE	32 V	Red	Auto Link	Automotive	1 kA	Fast Blow	Requires Holder	32 V	0.492 "	12.5 mm	1.059 in	26.9 mm	0.638 in	16.2 mm	50 A
OptiFuse TFLS-70A	ISO, SAE	32 V	Brown	Auto Link	Automotive	1 kA	Fast Blow	Requires Holder	32 V	0.492 "	12.5 mm	1.059 in	26.9 mm	0.638 in	16.2 mm	70 A
OptiFuse TFLS-60A	ISO, SAE	32 V	Yellow	Auto Link	Automotive	1 kA	Fast Blow	Requires Holder	32 V	0.492 "	12.5 mm	1.059 in	26.9 mm	0.638 in	16.2 mm	60 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.69

General part information

50 A 32 V AC 32 V DC Fuse Automotive Requires Holder Auto Link
