EC4BU-12D12

Active

Cincon Electronics Co. LTD

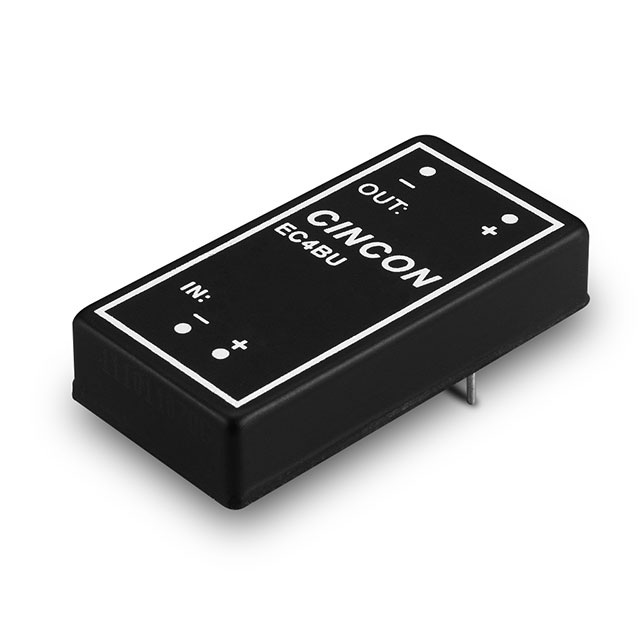

DC DC CONVERTER +/-12V 10W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EC4BU-12D12

Active

Cincon Electronics Co. LTD

DC DC CONVERTER +/-12V 10W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EC4BU-12D12

Applications	ITE (Commercial)
Approval Agency	CE
Current - Output (Max) [Max]	416 mA
Efficiency	87 %
Features	SCP, UVLO, OVP, OCP
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	10 W
Size / Dimension [x]	2 in
Size / Dimension [x]	50.8 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Standard Number	60950-1
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

EC4BU Series

Part	Package / Case	Voltage - Output 1	Efficiency	Current - Output (Max)	Current - Output (Max)	Operating Temperature [Min]	Operating Temperature [Max]	Standard Number	Power (Watts)	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Approval Agency	Applications	Mounting Type	Voltage - Output 2	Control Features	Features	Type	Number of Outputs	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]
Cincon Electronics Co. LTD EC4BU-48D15T	6-DIP Module	15 V	87 %	333 mA	333 mA	-40 °C	105 C	60950-1	10 W	36 V	75 V	CE	ITE (Commercial)	Through Hole	-15 V	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Isolated Module	2	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Cincon Electronics Co. LTD EC4BU-12S33	6-DIP Module	3.3 V				-40 °C	105 C	60950-1	8.3 W	9 V	18 V	CE	ITE (Commercial)	Through Hole			OCP OVP SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	2.5 A
Cincon Electronics Co. LTD EC4BU-24D12T	6-DIP Module	12 V	87 %			-40 °C	105 C	60950-1	10 W	18 V	36 V	CE	ITE (Commercial)	Through Hole	-12 V	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Isolated Module	2	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	416 mA
Cincon Electronics Co. LTD EC4BU-12D12	6-DIP Module	12 V	87 %			-40 °C	105 C	60950-1	10 W	9 V	18 V	CE	ITE (Commercial)	Through Hole	-12 V		OCP OVP SCP UVLO	Isolated Module	2	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	416 mA
Cincon Electronics Co. LTD EC4BU-24S15	6-DIP Module	15 V	87 %			-40 °C	105 C	60950-1	10 W	18 V	36 V	CE	ITE (Commercial)	Through Hole			OCP OVP SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	666 mA
Cincon Electronics Co. LTD EC4BU-12S05A	6-DIP Module	5 V	85 %			-40 °C	105 C	60950-1	10 W	9 V	18 V	CE	ITE (Commercial)	Through Hole			OCP OVP SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	2 A
Cincon Electronics Co. LTD EC4BU-12S33T	6-DIP Module	3.3 V				-40 °C	105 C	60950-1	8.3 W	9 V	18 V	CE	ITE (Commercial)	Through Hole		Active High Enable	OCP OVP Remote On/Off SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	2.5 A
Cincon Electronics Co. LTD EC4BU-24S33A	6-DIP Module	3.3 V				-40 °C	105 C	60950-1	8.3 W	18 V	36 V	CE	ITE (Commercial)	Through Hole			OCP OVP SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	2.5 A
Cincon Electronics Co. LTD EC4BU-48D05T	6-DIP Module	5 V	85 %	1 A	1 A	-40 °C	105 C	60950-1	10 W	36 V	75 V	CE	ITE (Commercial)	Through Hole	-5 V	Active High Enable	OCP OVP Remote On/Off SCP UVLO	Isolated Module	2	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm
Cincon Electronics Co. LTD EC4BU-48S05T	6-DIP Module	5 V	85 %			-40 °C	105 C	60950-1	10 W	36 V	75 V	CE	ITE (Commercial)	Through Hole		Active High Enable	OCP OVP Remote On/Off SCP UVLO	Isolated Module	1	1.5 kV	25.4 mm	0.4 "	2 in	10.2 mm	50.8 mm	25.4 mm	2 A

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 33.85
		5	$ 31.91
		10	$ 31.11
		25	$ 30.08
		50	$ 29.33
		100	$ 28.59
		250	$ 27.65

Description

General part information

EC4BU Series

Isolated Module DC DC Converter 2 Output 12V -12V 416mA, 416mA 9V - 18V Input
